This structured digital collection provides comprehensive technical documentation for the Blackburn Buccaneer, Britain's legendary carrier-based low-level strike aircraft that pushed the boundaries of aeronautical engineering with its innovative boundary layer control, area-ruled fuselage, and complex engine-wing integration. With 36 manuals covering all major variants from S Mk 1 through S Mk 2B, this is the definitive reference library for serious restorers, engineers, and researchers working with this technically sophisticated aircraft.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Blackburn Buccaneer documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Technical Overview and Engineering Challenges

The Blackburn Buccaneer represents one of the most technically ambitious aircraft designs of the Cold War era, incorporating cutting-edge aerodynamic technologies and facing significant engineering challenges that required innovative solutions. Designed specifically for high-speed, low-level strike missions against naval targets, the Buccaneer's development pushed the limits of 1950s-1960s aeronautical engineering and resulted in an aircraft with unique technical characteristics and operational capabilities.

Boundary Layer Control Technology: The Buccaneer's most distinctive technical feature was its sophisticated boundary layer control (BLC) system, which addressed the fundamental challenge of achieving both high-speed performance and low-speed carrier landing characteristics in a single airframe. The system bled high-pressure air from the engine compressors and directed it over the wing's trailing-edge flaps and the tailplane, energizing the boundary layer and delaying flow separation. This allowed the aircraft to achieve remarkably low approach speeds (around 130 knots) for carrier operations while maintaining high-speed performance at low altitude. The BLC system required complex ducting, precise airflow management, and careful integration with the engine systems—any failure or imbalance could result in asymmetric lift and dangerous handling characteristics during critical phases of flight.

Engine-Wing Integration Structural Challenges: The Buccaneer's engine installation presented significant structural engineering challenges due to the complex interaction between the powerplants and the wing structure. The twin Rolls-Royce Spey turbofan engines were mounted in the fuselage sides, with their jet efflux passing close to the wing trailing edge. This configuration created several technical issues: thermal loading on the wing structure from hot exhaust gases, structural vibration from engine operation transmitted through the airframe, complex stress distributions at the engine mounting points, and the need for robust thermal shielding and vibration damping systems. The engine nacelles were integrated into the fuselage in a way that required careful structural design to handle both the static loads from engine weight and the dynamic loads from thrust, while maintaining the area-ruled fuselage shape for transonic efficiency. The S Mk 2 variant's more powerful Spey engines (11,100 lbf thrust each versus 7,100 lbf in the S Mk 1's Gyron Junior engines) exacerbated these structural challenges, requiring strengthened mounting structures and enhanced thermal protection systems.

Area Rule and Transonic Aerodynamics: The Buccaneer's fuselage was carefully area-ruled to minimize transonic drag—the cross-sectional area distribution was optimized to reduce the drag rise encountered when approaching the speed of sound. This resulted in the aircraft's distinctive "wasp-waisted" fuselage shape, with the cross-section narrowing where the wings joined the fuselage. Achieving this aerodynamic optimization while accommodating the internal weapons bay, fuel tanks, engines, and systems required sophisticated structural design. The area ruling had to be maintained despite the presence of large engine nacelles, creating complex three-dimensional shaping challenges that affected structural load paths and required careful finite element analysis (by 1950s standards) to ensure adequate strength.

Rotating Bomb Bay Door Mechanism: The Buccaneer featured an innovative rotating bomb bay door that reduced drag compared to conventional split doors. The door rotated 180 degrees to expose the weapons bay, with weapons mounted on the inner surface. This mechanism required a complex structural and mechanical system: a robust rotating structure capable of carrying weapons loads up to 16,000 lbs, precise actuation mechanisms that could operate reliably in high-g maneuvers and carrier environments, sealing systems to prevent airflow into the weapons bay during high-speed flight, and structural integration with the fuselage that maintained torsional rigidity. The rotating door mechanism was prone to jamming if not properly maintained, and the actuation system required careful rigging and regular inspection.

Low-Level Flight Structural Requirements: The Buccaneer's primary mission—high-speed flight at extremely low altitude (200 feet or less above the sea)—imposed severe structural requirements. At 600+ mph at sea level, the aircraft encountered high dynamic pressures, turbulent air, and rapid load changes from atmospheric disturbances. The airframe had to withstand: high-frequency vibration from turbulent air, rapid load factor changes during terrain-following flight, fatigue loading from repeated low-level missions, and potential bird strikes at high speed. The wing structure incorporated multiple spars and heavy-gauge skins to handle these loads, while the fuselage structure was designed for high torsional rigidity to maintain control effectiveness during violent maneuvering at low altitude. Fatigue life management became critical, as low-level operations accumulated damage much faster than high-altitude flight.

Carrier Operations Structural Design: As a carrier-based aircraft, the Buccaneer required structural features to handle the extreme loads of catapult launches and arrested landings: a robust nose gear with catapult attachment points capable of withstanding launch accelerations up to 4g, an arrestor hook and supporting structure designed for peak loads exceeding 40,000 lbs during arrested landings, wing folding mechanisms to reduce deck space (the wings folded upward and the nose folded down for compact storage), strengthened landing gear to handle sink rates up to 26 feet per second on carrier decks, and corrosion-resistant materials and protective coatings to withstand the harsh salt-water environment. The wing fold mechanism was particularly complex, requiring structural continuity across the fold line while allowing the wing to fold and unfold reliably in shipboard conditions.

Fuel System and Internal Volume Challenges: The Buccaneer carried substantial internal fuel (approximately 3,800 gallons in the S Mk 2) to achieve the range required for strike missions. Packaging this fuel volume within the area-ruled fuselage while accommodating engines, weapons bay, systems, and crew required innovative structural solutions. Fuel was carried in integral wing tanks and fuselage tanks, with the tank structures forming part of the primary airframe. This wet wing design required careful sealing, structural design to prevent fuel leakage under flight loads, and systems to manage fuel distribution and maintain proper center of gravity throughout the mission. The fuel system's complexity increased the potential for leaks and required extensive maintenance to ensure structural integrity of the fuel-carrying structure.

Avionics and Systems Integration: The Buccaneer incorporated sophisticated avionics for its era, including terrain-following radar, navigation systems, and weapons delivery computers. Integrating these systems required: electromagnetic compatibility design to prevent interference between systems, cooling systems for heat-generating avionics in a tightly-packed airframe, vibration isolation for sensitive electronics, and structural provisions for antenna installations without compromising aerodynamic performance. The S Mk 2A and 2B variants added even more sophisticated avionics, including laser designation systems and updated navigation equipment, further complicating the systems integration challenges.

Maintenance and Accessibility Challenges: The Buccaneer's tightly-packaged design created significant maintenance access challenges. Many systems were difficult to reach, requiring extensive panel removal for routine servicing. The boundary layer control system's complex ducting, the engine installations, and the weapons bay mechanisms all required specialized tools and procedures for maintenance. The aircraft's carrier-based heritage meant it was designed for maintainability in shipboard conditions, but this sometimes conflicted with ease of access for land-based operations. Corrosion inspection and treatment were ongoing challenges, particularly for aircraft that had served aboard carriers.

Manuals Included in This Collection

Technical Brochure (1 manual):

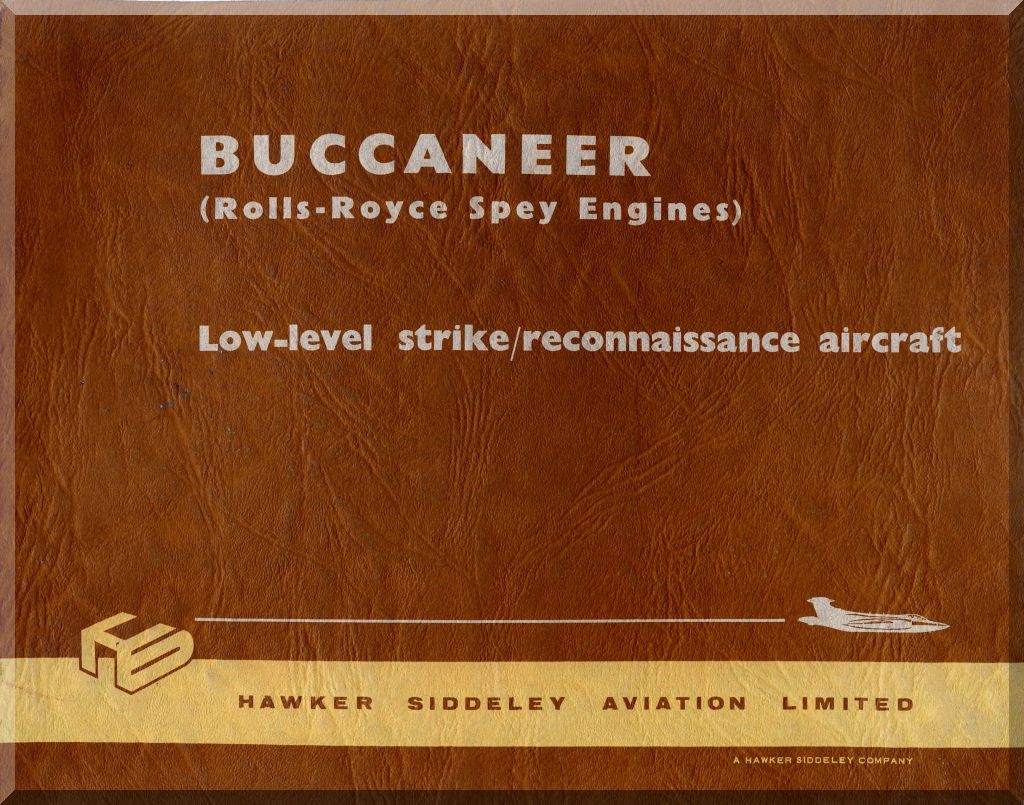

• Blackburn Buccaneer Aircraft Technical Brochure Manual - 88 pages - 1970

S Mk 1 Variant Documentation (1 manual):

• Blackburn Buccaneer S Mk.1 Aircraft Illustrated Parts Catalogue Manual - Book I - 101B-1201-3A
• Blackburn Buccaneer S Mk. 1 Aircraft Aircrew Notes Manual

S Mk 2 Variant Documentation (24 manuals):

• Blackburn Buccaneer S Mk 2 Aircraft Operating Data Manual - AP 101B-1202-16(N)-1988

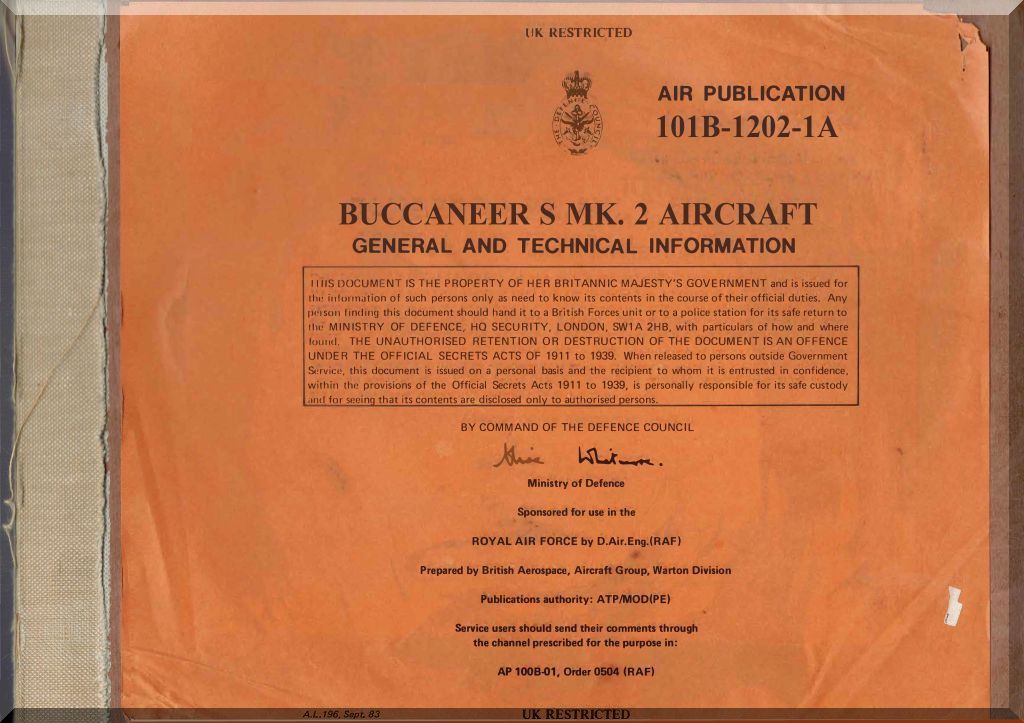

• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - Cover 1 - AP 101B-1202-1A -1988
• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - Cover 2 - AP 101B-1202-1A -1988
• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - Cover 1 - AP 101B-1202-1B -1988
• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - Cover 2 - AP 101B-1202-1B -1988
• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - Cover 3 - AP 101B-1202-1B -1988
• Blackburn Buccaneer S Mk2 Aircraft Servicing Manual - AP 101B-1202-1C -1988
• Blackburn Buccaneer S Mk2 Aircraft Master Servicing Schedule Manual - AP 101B-1202-5A1 -1988
• Blackburn Buccaneer S Mk2 Aircraft Standard Servicing Procedures (Airframe and NDT) Manual - AP 101B-1202-5A3A -1988
• Blackburn Buccaneer S Mk2 Aircraft Standard Servicing Procedures (Weapons) Manual - AP 101B-1202-5A3B -1988
• Blackburn Buccaneer S Mk2 Aircraft Standard Servicing Procedures (Electrical) Manual - AP 101B-1202-5A3C -1988
• Blackburn Buccaneer S Mk2 Aircraft Primary Servicing Schedule Manual - AP 101B-1202-5B2 -1988

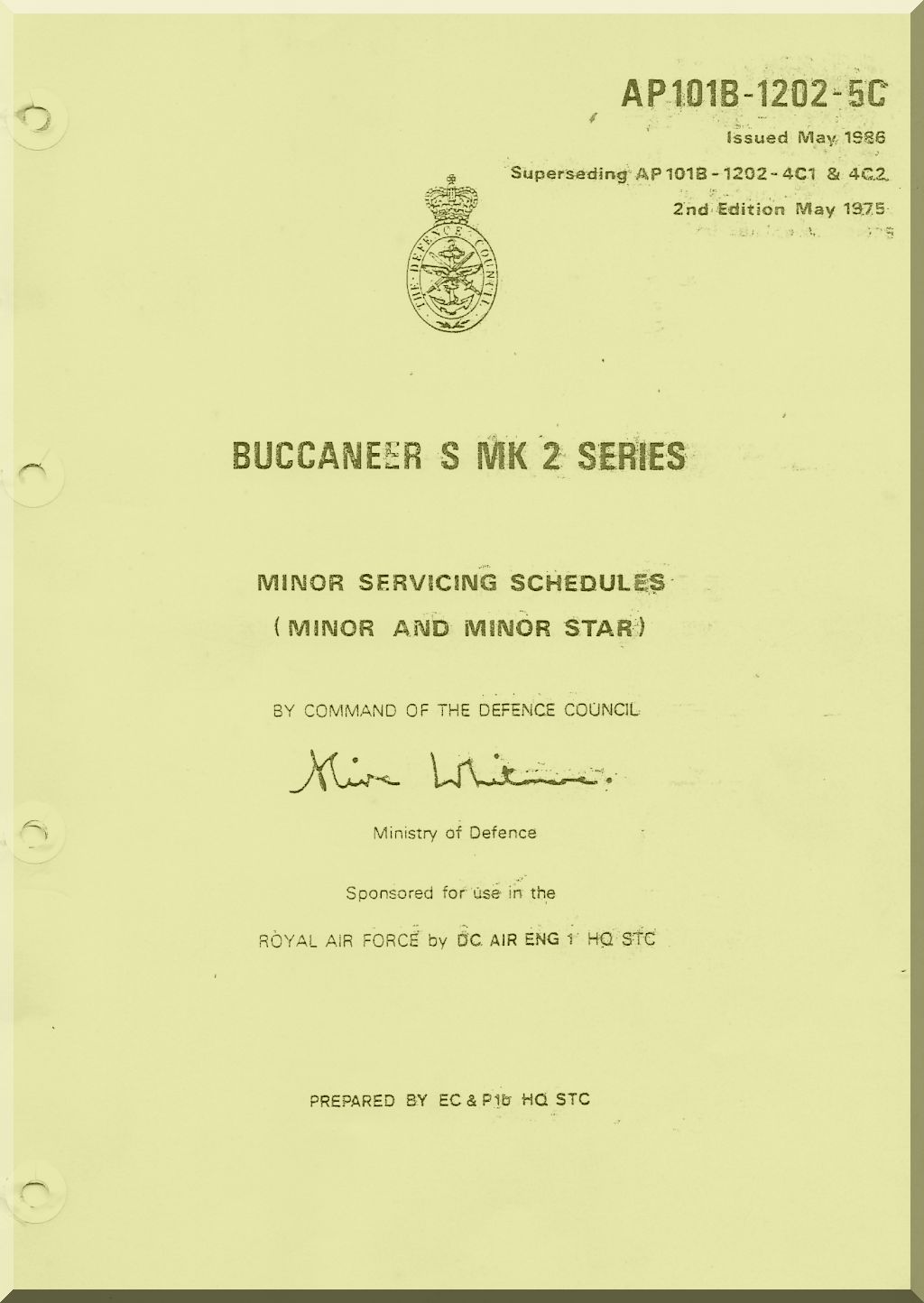

• Blackburn Buccaneer S Mk2 Aircraft Minor Servicing Schedule Manual - AP 101B-1202-5C-1988
• Blackburn Buccaneer S Mk2 Aircraft Major Servicing Schedule Manual - AP 101B-1202-5D-1988
• Blackburn Buccaneer S Mk2 Aircraft Bay Servicing Schedule Manual - AP 101B-1202-5F-1988
• Blackburn Buccaneer S Mk 2 Aircraft Operation Turn Round Schedule Manual - AP 101B-1202-5T-1988

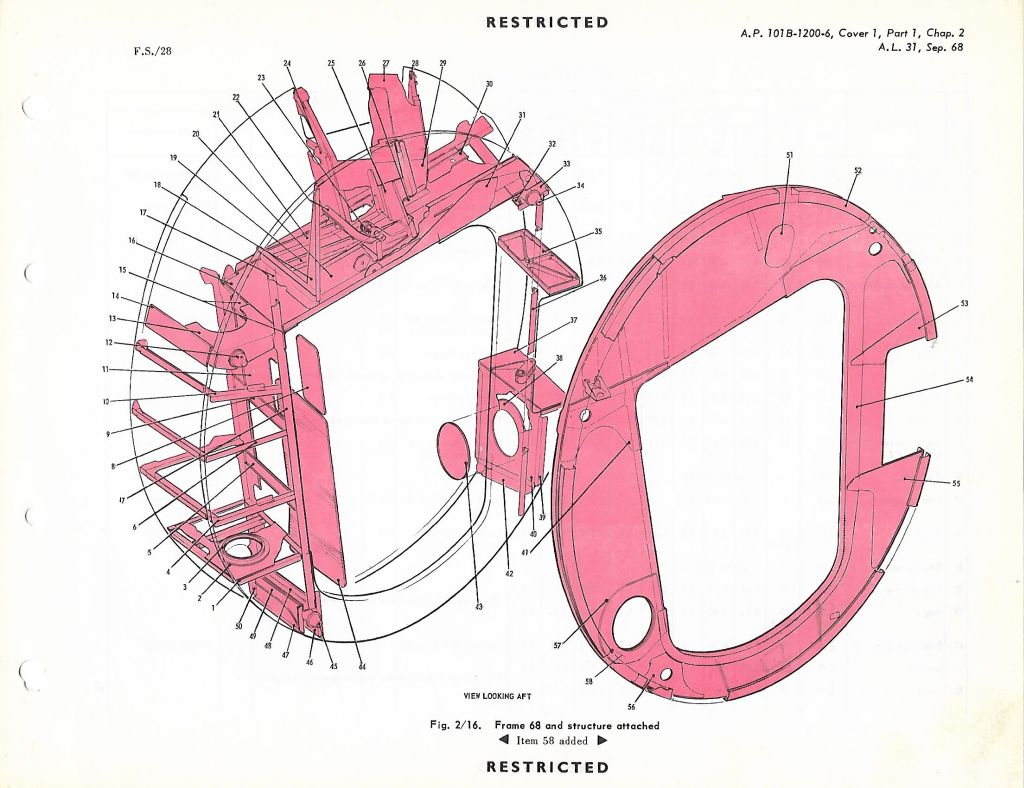

• Blackburn Buccaneer S Mk2 Aircraft Repair and Reconditioning Instruction Manual - Cover 1- AP 101B-1200-6-1987

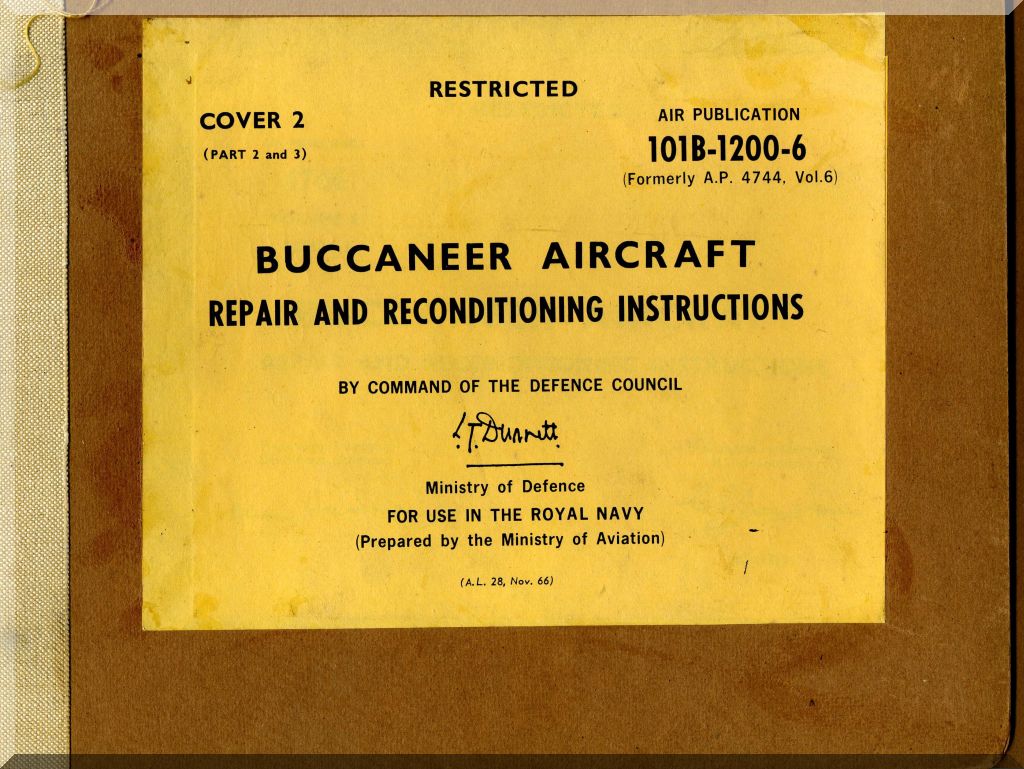

• Blackburn Buccaneer S Mk.2 Aircraft Repair and Reconditioning Instruction Manual - Cover 2 - AP 101B-1200-6-1987

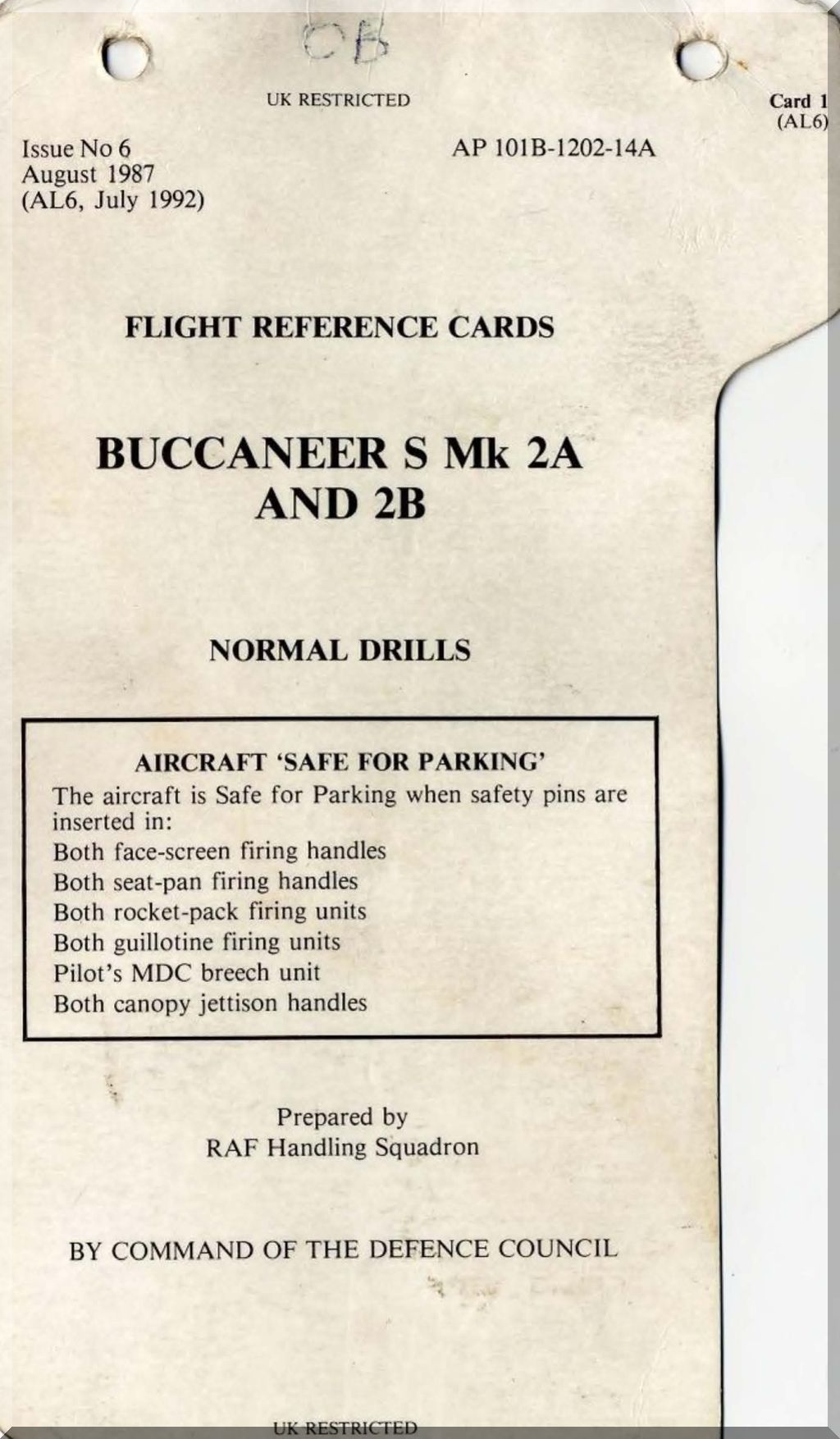

• Blackburn Buccaneer S Mk.2 & 2A Aircraft Flight Reference Cards Manual - AP 101B-1202-314A -1987
• Blackburn Buccaneer S Mk.2 Aircraft Illustrated Parts Catalogue Manual - AP 101B-1202-3A1 -1985
• Blackburn Buccaneer S Mk.2 Aircraft Illustrated Parts Catalogue Manual - AP 101B-1202-3A2 -1985

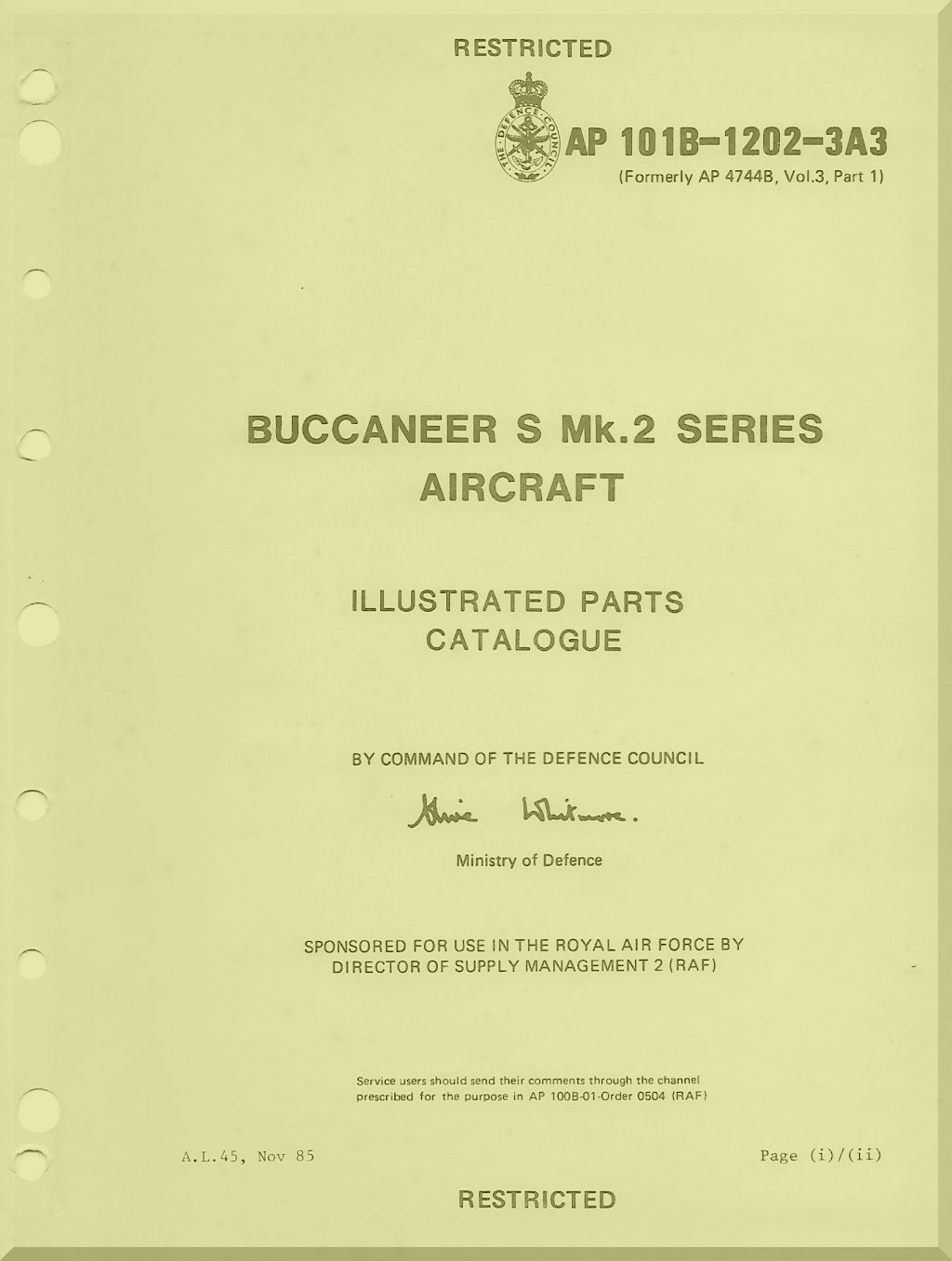

• Blackburn Buccaneer S Mk.2 Aircraft Illustrated Parts Catalogue Manual - AP 101B-1202-3A3 -1985
• Blackburn Buccaneer S Mk.2 Aircraft Illustrated Parts Catalogue Manual - AP 101B-1202-3A4 -1985
• Blackburn Buccaneer S Mk.2 Aircraft Illustrated Parts Catalogue Manual - AP 101B-1202-3A5 -1985

S Mk 2A & 2B Variant Documentation (5 manuals):

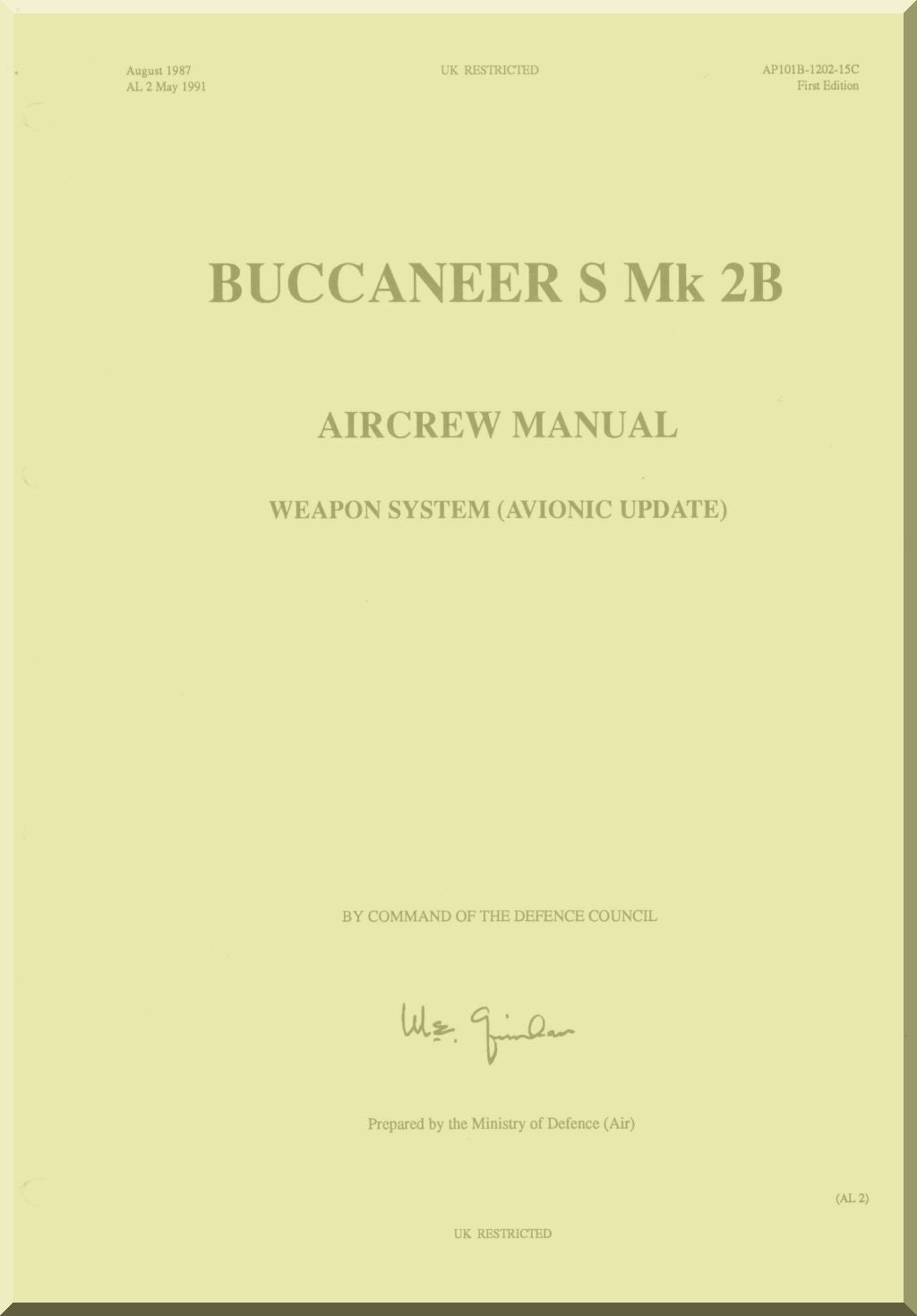

• Blackburn Buccaneer S Mk 2A & 2B Aircraft Aircrew Manual-Weapon System (Avionic Update) - AP 101B-1202-15C -1988
• Blackburn Buccaneer S Mk 2A & 2B Aircraft Aircrew Manual-Flight Systems - AP 101B-1202-15A-1988
• Blackburn Buccaneer S Mk 2A & 2B Aircraft Operating Data Manual - AP 101B-1202-16 -1988
• Blackburn Buccaneer S Mk.2A ,B Aircraft Aircrew Notes Manual
• Blackburn Buccaneer S Mk. 2A Aircraft Aircrew Notes Manual
• Blackburn Buccaneer S Mk.2A & 2B Aircraft Service Diagrams Manual - AP 101B-1202-10A1-1987

Additional Variants (3 manuals):

• Blackburn Buccaneer 50 Aircraft Aircrew Notes Manual
• Blackburn Buccaneer M.148 Aircraft Training Manual
• Blackburn Buccaneer M.148 Aircraft Pilot's Notes Manual

This collection provides comprehensive technical coverage of the Blackburn Buccaneer across all major variants. The documentation spans technical brochures, aircrew manuals covering flight systems and weapon systems, operating data manuals, extensive servicing manuals covering airframe, weapons, electrical systems, and NDT procedures, master servicing schedules, repair and reconditioning instructions, service diagrams, flight reference cards, and illustrated parts catalogs. The manuals date from 1970 through 1988, covering the aircraft's operational service with the Royal Navy and Royal Air Force. This represents the most comprehensive Buccaneer technical reference library available for understanding the complex engineering, maintenance requirements, and operational procedures of this sophisticated strike aircraft.

Engineering Norms and Standards

The Blackburn Buccaneer was designed and manufactured to rigorous British military aviation standards:

• British Military Aircraft Standards: The Buccaneer adhered to Air Publication (AP) standards for Royal Navy and Royal Air Force aircraft, including structural design requirements, systems integration standards, and documentation formats. The AP 101B series manuals in this collection represent official military technical publications.
• Carrier Suitability Requirements: As a carrier-based aircraft, the Buccaneer met stringent Admiralty standards for catapult launches, arrested landings, deck handling, corrosion resistance, and shipboard operations. These requirements drove structural design decisions and material selections throughout the aircraft.
• Blackburn Aircraft Engineering Standards: Production followed Blackburn Aircraft Limited (later Hawker Siddeley Aviation) engineering standards for manufacturing tolerances, quality control, structural testing, and systems integration. These standards governed all aspects of design, production, and modification throughout the aircraft's service life.
• Rolls-Royce Engine Standards: Powerplant installation and maintenance followed Rolls-Royce specifications for the Spey turbofan engines, including mounting requirements, fuel system specifications, bleed air systems for boundary layer control, and maintenance procedures. The complex integration of engine bleed air with the BLC system required precise adherence to both engine and airframe standards.
• Fatigue Life Management: Given the severe structural loads from low-level operations, the Buccaneer was subject to comprehensive fatigue life tracking and structural inspection programs. Standards governed crack inspection intervals, non-destructive testing procedures, and structural life extension programs that kept the aircraft flying safely for over three decades.

These engineering standards represent the quality control and technical framework that governed Buccaneer operations from 1962 through 1994. For restorers, engineers, and researchers, understanding these standards provides essential insight into the design philosophy, structural requirements, and maintenance practices that enabled this complex aircraft to operate successfully in one of the most demanding flight regimes in military aviation.

Format and Delivery

• Format: Digital download (PDF)
• Language: English (Royal Navy/RAF documentation)
• Total Manuals: 36 comprehensive documents
• Variant Coverage: S Mk 1, S Mk 2, S Mk 2A, S Mk 2B, Buccaneer 50, M.148
• Quality: High-resolution scans of original Air Publications and manufacturer documentation
• Organization: Structured folder hierarchy with variant-specific documentation clearly separated
• Delivery: Instant digital download upon purchase
• Updates: Free lifetime updates as additional documentation is acquired and added to the collection
