BAe / Beagle / Scottish Aviation Bulldog Aircraft Manuals Collection
This is a comprehensive digital collection of official maintenance, aircrew, repair, parts, and owner documentation for the Scottish Aviation / BAe Bulldog — the rugged military-standard piston trainer developed from the Beagle Pup and operated extensively by the Royal Air Force and numerous export customers. The collection spans the full production and service life of the type, from early Series 100 handbooks through to late-1990s maintenance and parts revisions.
Definitive Collection with Free Lifetime Updates
This is a living collection that we continuously expand and refine. As we acquire additional Bulldog documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.
Historical Note
The Scottish Aviation Bulldog traces its lineage directly to the Beagle Pup, a light civil aircraft designed in the mid-1960s. When Beagle Aircraft collapsed in 1970, Scottish Aviation acquired the design rights and developed the Bulldog as a dedicated military primary trainer, retaining the Pup's excellent handling qualities while adding a strengthened aerobatic airframe, side-by-side seating, and a more powerful Lycoming engine. The prototype flew in 1969, and the type entered RAF service as the Bulldog T Mk.1 in 1973, eventually equipping University Air Squadrons and Air Experience Flights across the UK. Export customers included Sweden (Sk 61), Ghana, Kenya, Nigeria, Jordan, Lebanon, Malaysia, and others, with over 320 aircraft built across the Series 100 and Series 120 variants. British Aerospace (BAe) absorbed Scottish Aviation in 1977 and continued production and support. The Bulldog's robust aerobatic envelope (+6g / -3g), all-around cockpit visibility, and docile handling made it a highly regarded trainer. Many RAF examples accumulated over 9,500 hours and 10,000 landings before entering the civilian market, where they remain popular aerobatic and touring aircraft today. The current design authority is de Havilland Support Ltd (DHSL), which holds the Type Certificate and is the approved source for original flight manuals, technical publications, and airworthiness tracking.
Manuals Included in This Collection

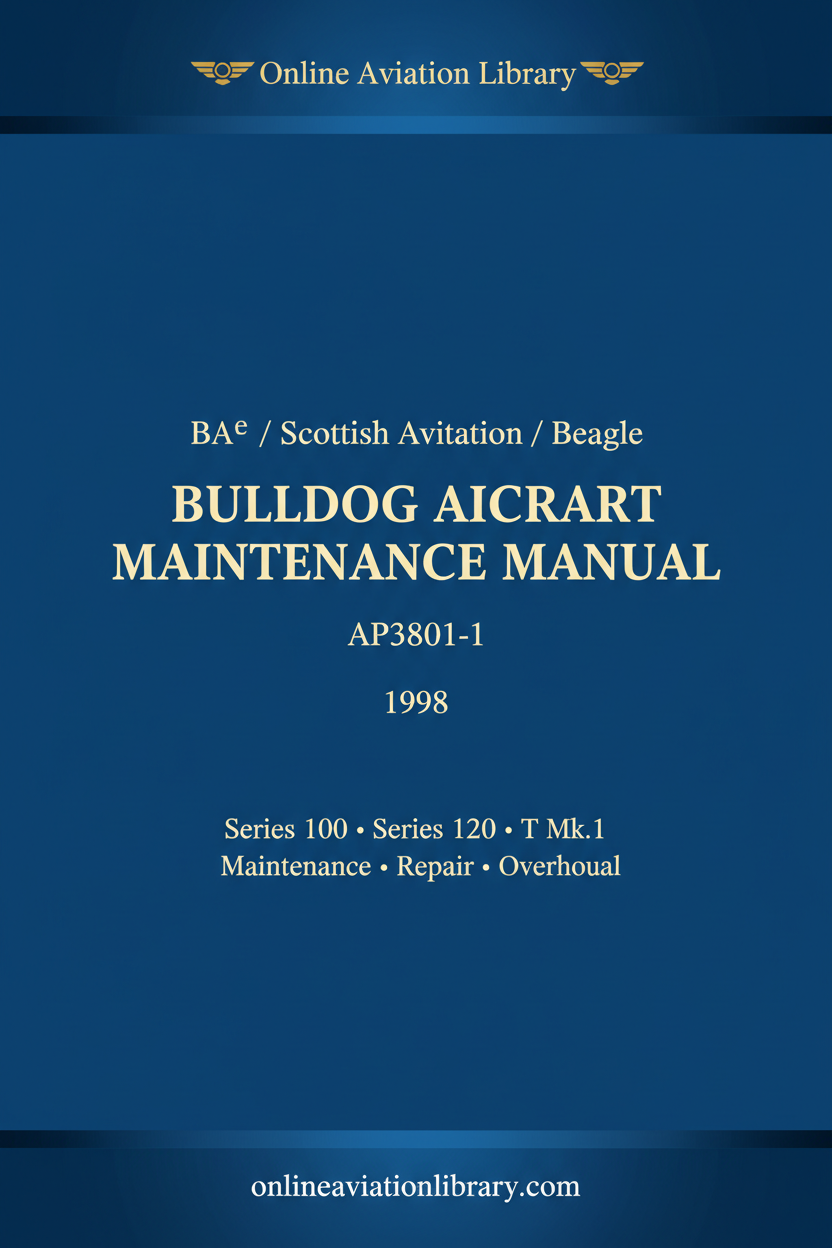

- BAe / Scottish Aviation / Beagle Bulldog Aircraft Maintenance Manual — AP3801-1 — 1998

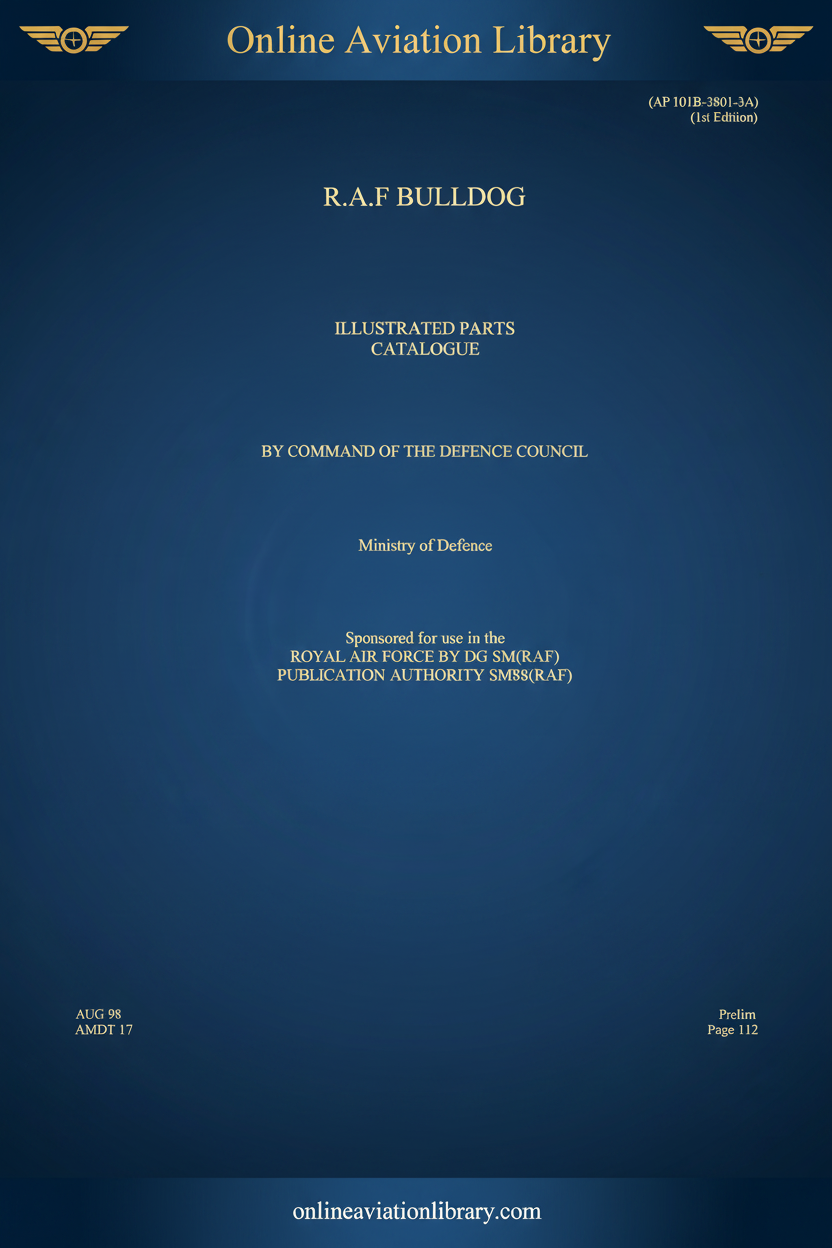

- BAe / Scottish Aviation / Beagle Bulldog Aircraft Parts Manual — AP101B-3801-3A — 1998

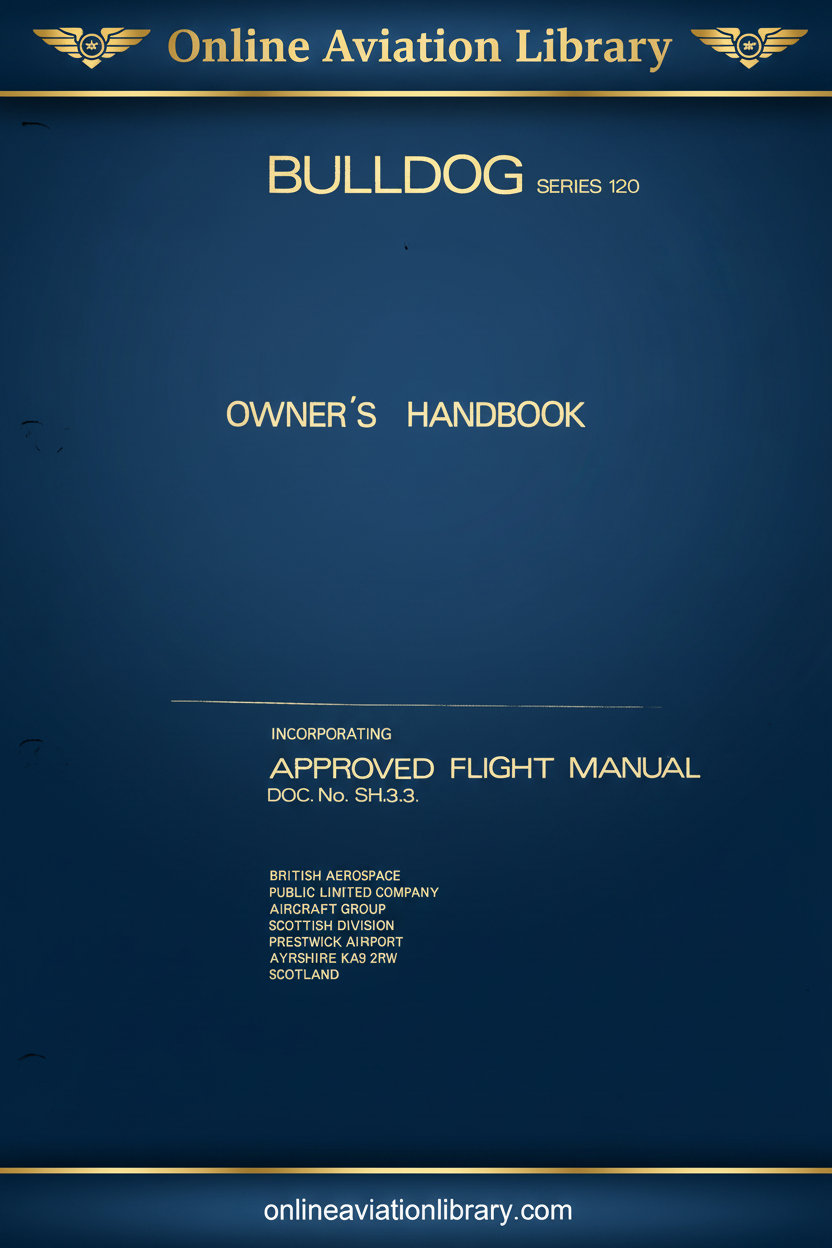

- BAe / Scottish Aviation / Beagle Bulldog Series 120 Aircraft Owner Manual
- BAe / Beagle / Scottish Aviation Bulldog Trainer Aircraft Technical Brochure

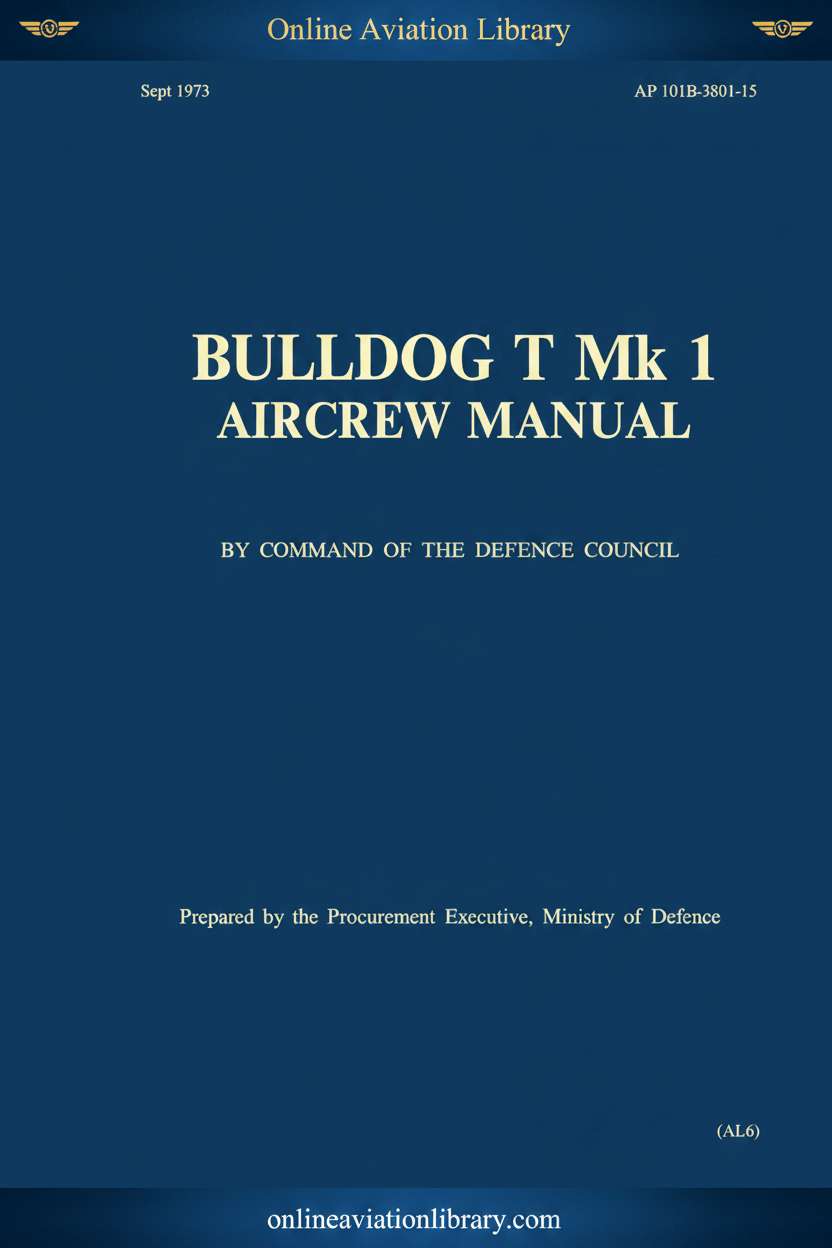

- BAe / Beagle / Scottish Aviation Bulldog T Mk.1 Aircraft Aircrew Manual — AP 101B-3801-15 — 1978

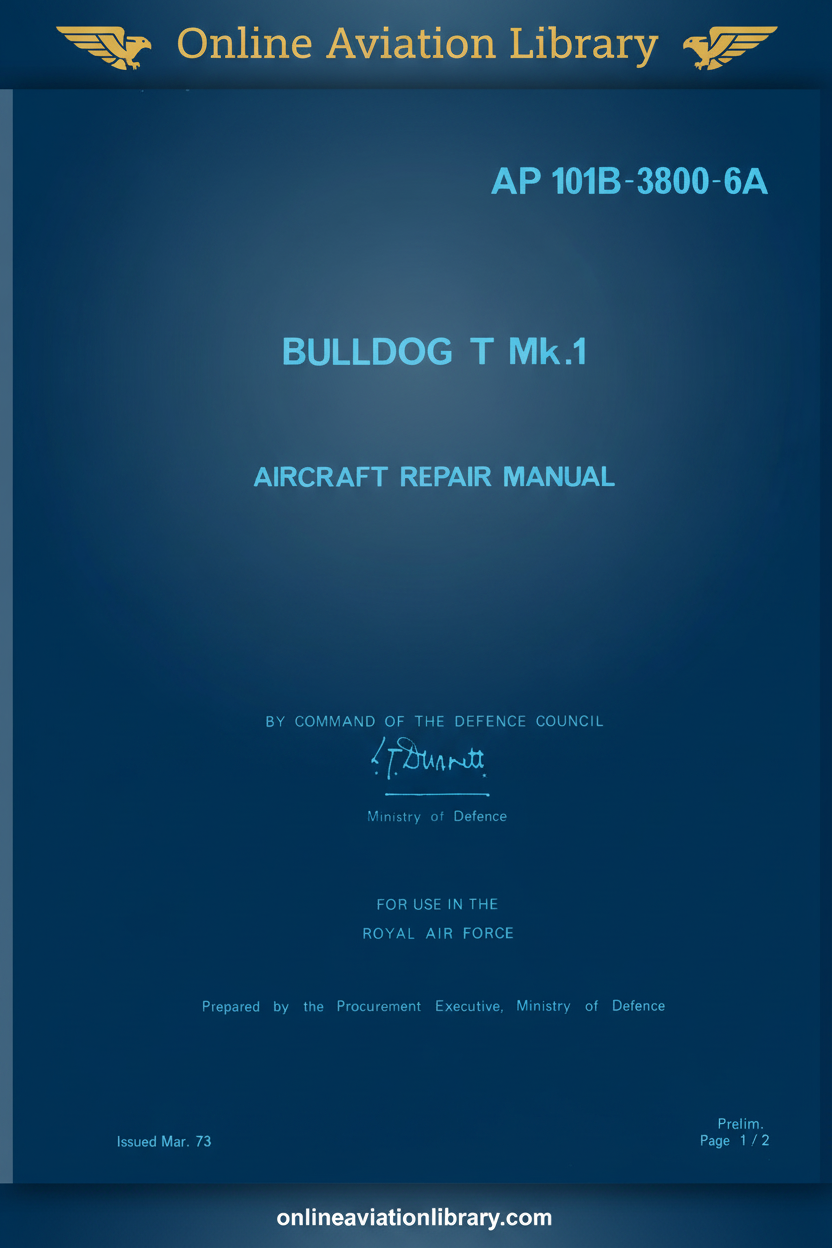

- BAe / Scottish Aviation / Beagle Bulldog T Mk.1 Aircraft Repair Manual — AP 101B-3800-6A — 1973

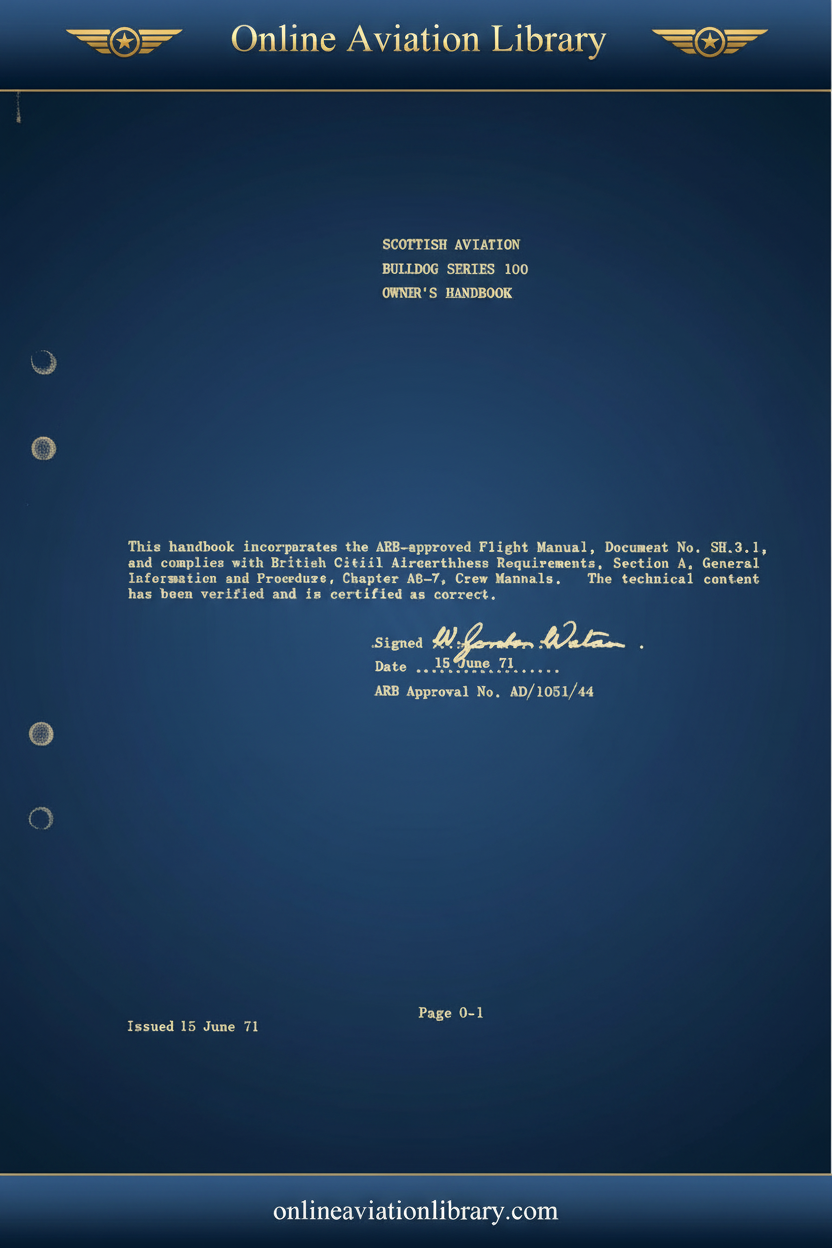

- BAe / Scottish Aviation / Beagle Bulldog Series 100 Aircraft Owner's Handbook — 1971

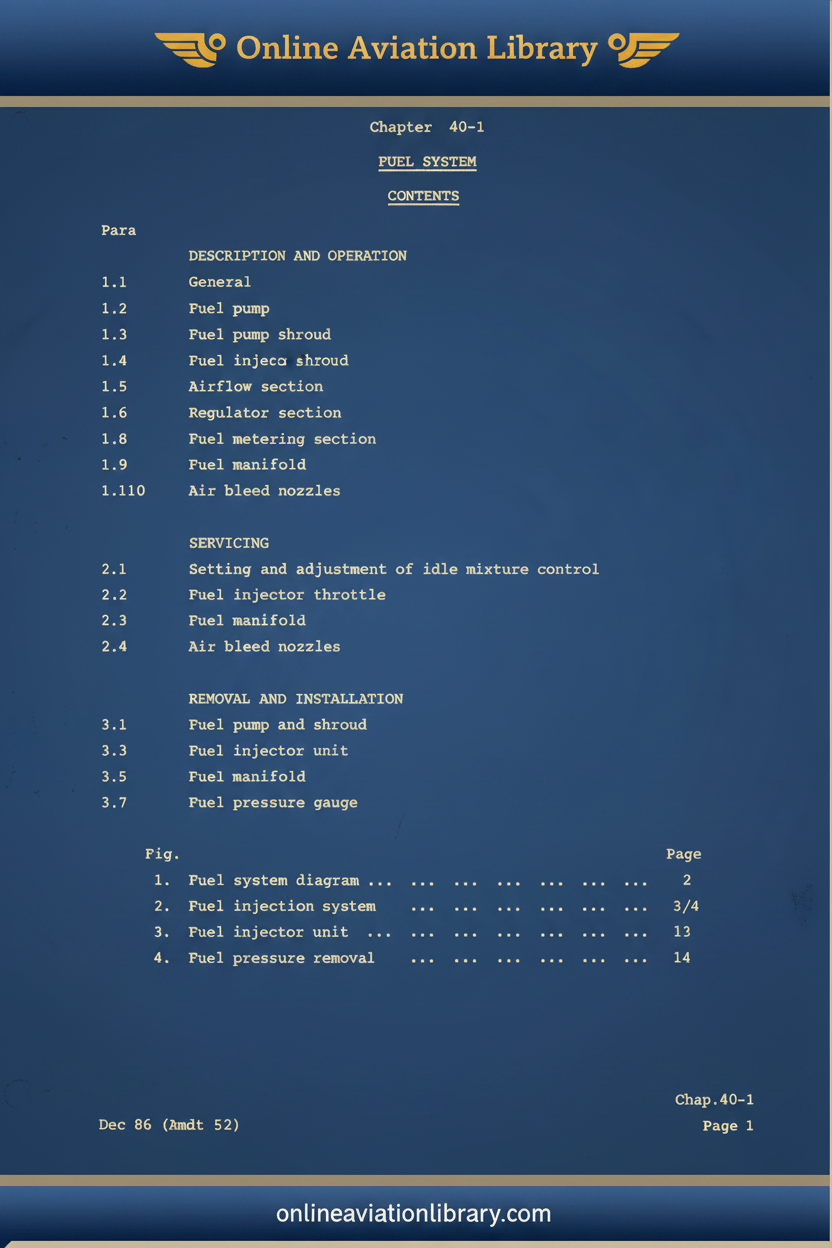

- BAe / Scottish Aviation / Beagle Bulldog Aircraft Fuel System Description — AP101B-3801-1 — 1986

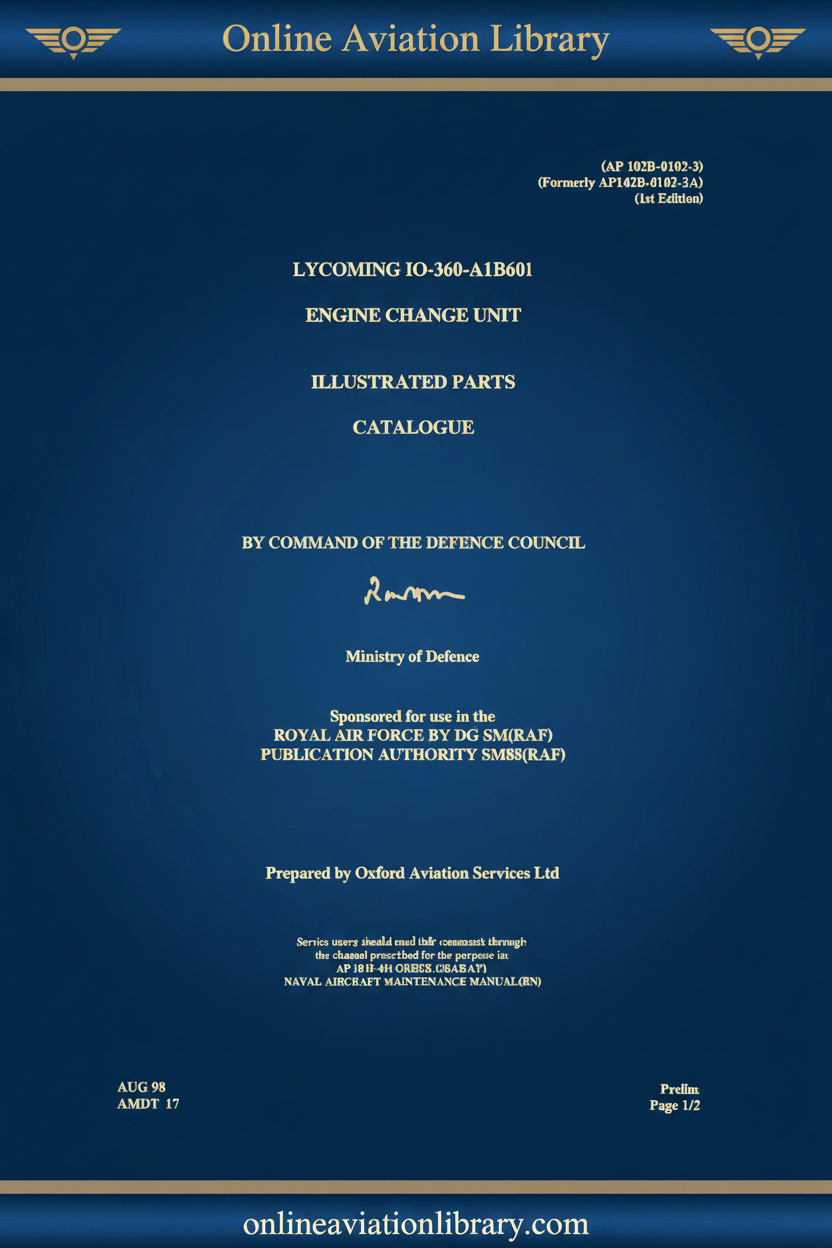

- Lycoming IO-360-A1B6 Engine Change Unit Illustrated Parts Catalogue — 1998

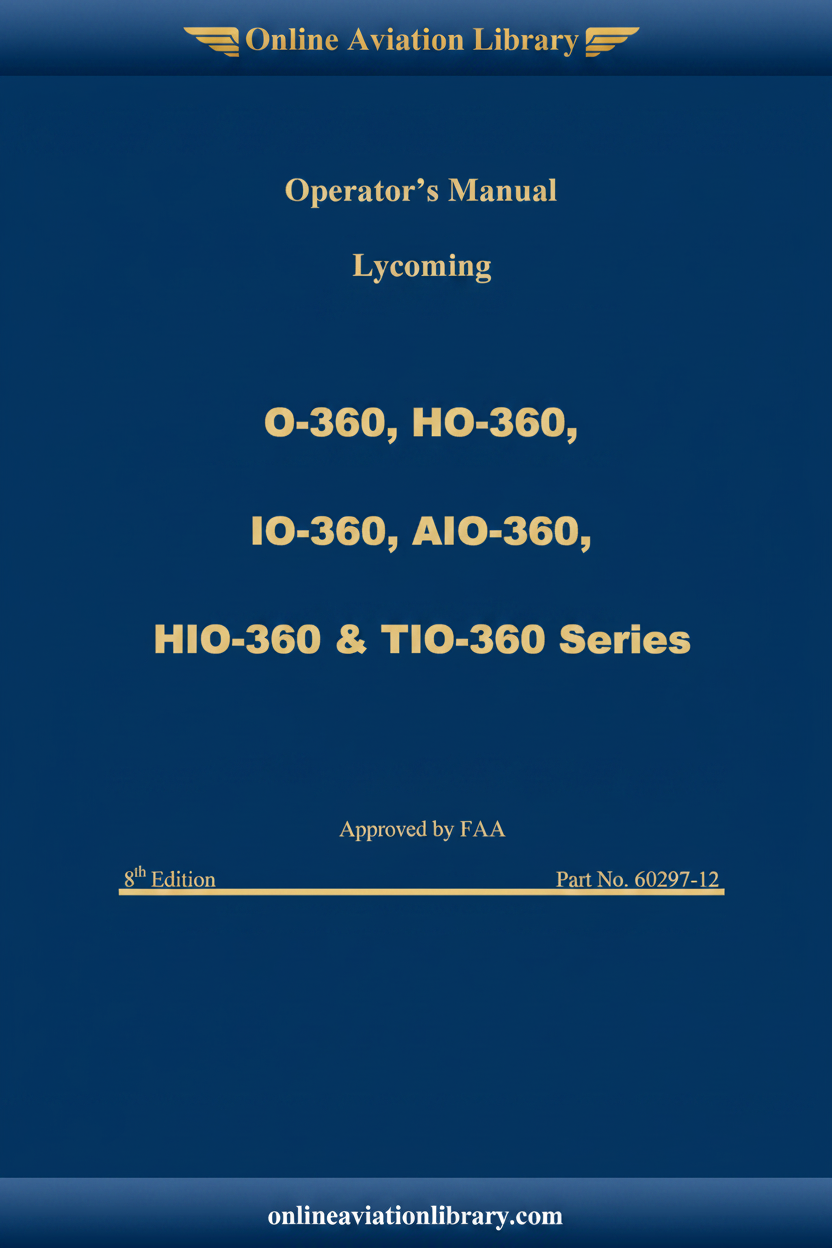

- Lycoming O-360 Operator Manuals

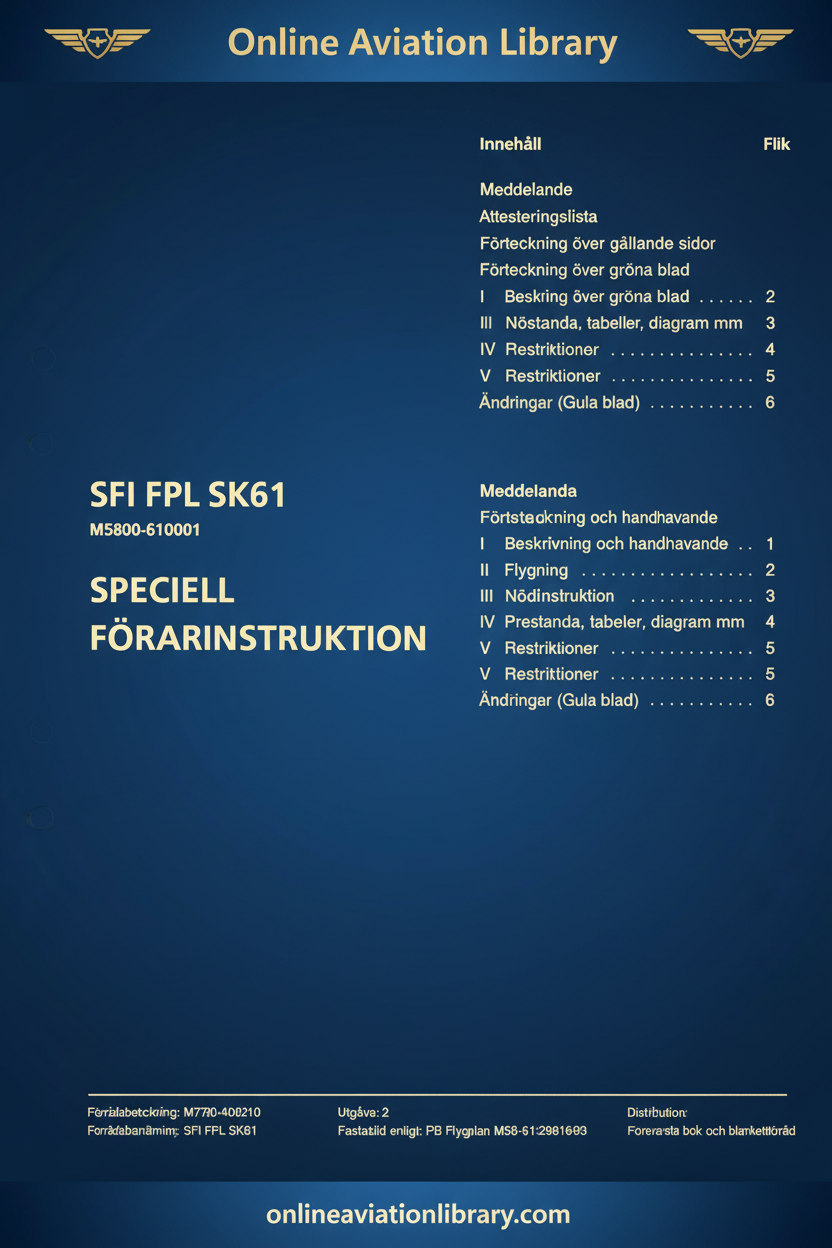

- Försvarets Materielverk — FPL SK61 Speciell Förarinstruktion (Special Pilot Instruction) — SFI FPL SK61 / M5800-610001 — Utgåva 2 — 1993-02-15 (Swedish Air Force Sk 61 variant)
Together these publications cover the full maintenance, repair, overhaul, aircrew operation, parts identification, and fuel system management requirements for the Bulldog Series 100, Series 120, and T Mk.1 variants — including the Swedish Air Force Sk 61 export variant — supported by the associated Lycoming engine documentation.
Engineering Norms and Standards
The Bulldog was designed and certified to British military airworthiness standards (BCAR Section K and DEF STAN equivalents) and civilian CAR/BCAR requirements for the export civil variants. Structural integrity is managed through a Fatigue Index (FI) system — a continuous non-dimensional counting formula measured by on-board meters to establish life limits. The original safe fatigue life was set at 114 FI. Modification BH.193 introduced strengthened replacement joint straps and doublers at the wing-to-fuselage main spar joint, elevating the ultimate safe airframe life to 200 FI. UK CAA CAP 747 serves as the master publication for mandatory airworthiness requirements affecting all remaining UK-registered Bulldogs. The standard powerplant is the Lycoming IO-360-A1B6 — a 200 hp (149 kW) four-cylinder, horizontally opposed, air-cooled, fuel-injected engine — driving a Hartzell HC-C2YK-4F/FC7666A-2 6 ft 2 in constant-speed two-blade propeller. The engine is modified for inverted flight, permitting a maximum of 15 seconds of inverted oil pressure. Key performance parameters include a maximum speed of 130 kts (150 mph) at sea level, a never-exceed speed of 169–185 kts IAS (variant dependent), a stall speed of 50–54 kts IAS, an initial climb rate of approximately 1,034 ft/min, a service ceiling of 16,000 ft, and a normal cruise endurance of approximately 5 hours at 75% power. The wing employs a NACA 63-615 aerofoil section with 6° of dihedral. Aerodynamic research — including wind tunnel studies using a 33% scale model at Cranfield University and CFD modeling — has confirmed a maximum lift-to-drag ratio of approximately 10:1 and characterized the aircraft's spin dynamics, stall behavior, and longitudinal and lateral-directional stability.
Specialized Documentation
Airworthiness Directives and mandatory modifications for UK-registered Bulldogs are consolidated under UK CAA CAP 747. Modification BH.193 is the primary structural life-extension bulletin and is mandatory for continued operation beyond 114 FI. Spin investigation data from Cranfield University research is available in the academic literature and provides detailed analysis of propeller-induced yaw asymmetry in spin entry and recovery. Performance Data Charts (Section 5) contain engineering grids for take-off and net flight path construction for obstacle clearance calculations.
Where to Find Additional Documentation
Official Support: De Havilland Support Ltd (DHSL) is the current Type Certificate holder and approved source for original flight manuals, technical publications, and airworthiness tracking for the Scottish Aviation Bulldog.
Historical Archives: Original company papers and technical drawings are preserved and indexed by the RAF Museum Company Records. Academic aerodynamic research is available via the Aeronautical Journal (Cambridge University Press). The Bulldog community maintains active type clubs and forums with operational experience and modification records.
Specialty Vendors: Online Aviation Library and similar documentation platforms host digitized historical manuals and promotional specifications for reference and research purposes.
Format and Delivery
All documents are delivered as high-resolution, print-friendly PDFs via instant download upon purchase. Files are clearly named and organized by document type and variant for ease of reference. Compatible with all standard PDF readers on desktop, tablet, and mobile devices.
Disclaimer: All manuals in this collection are provided for historical reference and research purposes only. For airworthiness-critical operations, always consult the current Type Certificate holder (DHSL) and applicable regulatory authority publications. No guarantee is made as to the completeness or currency of any document for operational use. Trade names and document numbers are the property of their respective owners. Copyright © Sicuro Publishing.
