AVRO 504 Aircraft Technical Manuals Collection

This comprehensive digital collection contains authentic technical documentation for the legendary AVRO 504 aircraft, one of the most significant training aircraft in aviation history. These original manuals were used throughout the aircraft's distinguished service life from WWI through the interwar period.

Manuals Included in This Collection:

• A.V. Roe AVRO 504 Aircraft Technical Notes Manual - Royal Air Force official technical documentation covering operational procedures and technical specifications
• A.V. Roe AVRO 504 Aircraft Erecting and Aligning Manual (1918) - Detailed assembly, rigging, and alignment procedures essential for proper aircraft construction and maintenance

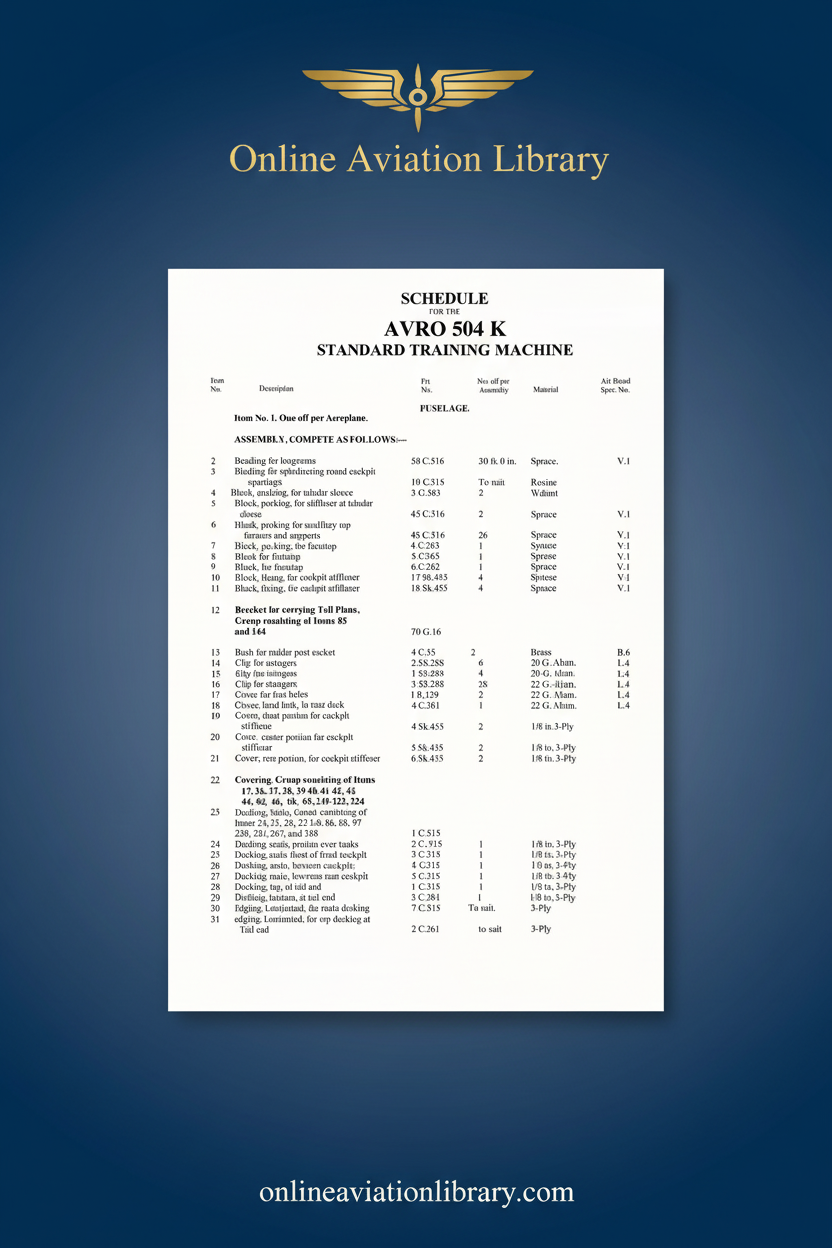

• A.V. Roe AVRO 504K Aircraft Schedule Spare Parts Manual (1918) - Comprehensive parts catalog with item numbers, descriptions, materials, and assembly information

Historical Note: The AVRO 504 Legacy

The AVRO 504 holds a distinguished place in aviation history as one of the most successful and longest-serving aircraft ever produced. First flown in 1913, this remarkable biplane became the backbone of pilot training for the Royal Flying Corps, Royal Naval Air Service, and later the Royal Air Force throughout World War I and well into the 1930s.

Design Origins and Early Service: Designed by A.V. Roe and Company, the AVRO 504 made its debut in September 1913. While initially conceived as a reconnaissance aircraft, it quickly proved its versatility. During WWI, AVRO 504s participated in one of the war's first strategic bombing raids, attacking German Zeppelin sheds at Friedrichshafen in November 1914. However, the aircraft's greatest contribution came as a training platform.

The Premier Training Aircraft: The AVRO 504's forgiving flight characteristics, stability, and reliability made it the ideal trainer for novice pilots. The 504K variant, introduced in 1918, became the standard training aircraft for the RFC and RAF. Thousands of Allied pilots earned their wings in AVRO 504s, with the aircraft training more pilots than any other type during the war. Its gentle handling allowed students to master the fundamentals of flight while its robust construction forgave the inevitable mistakes of learning.

Production and Variants: Over 8,340 AVRO 504s were built during WWI alone, with production continuing into the 1930s. Total production exceeded 10,000 aircraft across numerous variants including the 504J, 504K, 504N, and others. The aircraft was manufactured not only by A.V. Roe but also by numerous subcontractors to meet wartime demand.

Post-War Civilian Success: After the Great War, surplus AVRO 504s flooded the civilian market, becoming immensely popular for barnstorming, joy-riding, and early commercial aviation ventures. The aircraft's reliability and low operating costs made it a favorite among flying circuses and early airlines throughout the 1920s. Many pilots who would later become aviation pioneers cut their teeth flying war-surplus AVRO 504s.

Enduring Service: The AVRO 504's service life proved remarkably long. The RAF continued using the type for training until 1933, while some civilian examples remained airworthy into the late 1930s. This longevity - spanning from 1913 to the mid-1930s - testifies to the soundness of the original design and the aircraft's adaptability to changing requirements.

Legacy Among Enthusiasts: Today, the AVRO 504 is revered among aviation historians, restorers, and vintage aircraft enthusiasts. Several examples have been meticulously restored to flying condition and appear at airshows worldwide, allowing modern audiences to experience this piece of aviation heritage. The aircraft represents a pivotal era when aviation transitioned from experimental novelty to practical military and civilian tool.

These Original Technical Manuals: The manuals in this collection represent authentic documentation used throughout the AVRO 504's service life. The 1918-dated erecting and parts manuals reflect the height of wartime production, when thousands of these aircraft were being assembled and maintained across training fields throughout Britain and the Empire. These documents provided the essential technical information needed by riggers, mechanics, and maintenance personnel to keep the AVRO 504 fleet airworthy.

For restorers working on AVRO 504 projects, historians researching WWI aviation, modelers seeking authentic details, or enthusiasts fascinated by this legendary trainer, these manuals offer invaluable primary-source technical information directly from the era of the aircraft's greatest service.

Digital Download Details:

All manuals are provided as high-quality digital files, suitable for on-screen viewing, printing, or use in restoration workshops. These documents preserve the original technical specifications, assembly procedures, and parts information exactly as used during the aircraft's operational service.
