This comprehensive digital collection provides structured technical documentation for the legendary Vought F4U Corsair and Goodyear F2G Super Corsair, covering all major production variants from initial F4U-1 models through the final F4U-7 and specialized AU-1 ground-attack version. The collection includes authentic pilot's handbooks, erection and maintenance instructions, illustrated parts catalogs, structural repair manuals, and technical descriptions spanning 1942 through 1953.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional F4U Corsair documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Vought F4U Corsair stands as one of the most successful and longest-serving fighter aircraft in aviation history. Designed by Rex Beisel and the Vought-Sikorsky engineering team in 1938, the prototype XF4U-1 first flew on May 29, 1940, powered by the new Pratt & Whitney R-2800 Double Wasp engine—the most powerful engine available at the time. The aircraft's distinctive inverted gull-wing design was not merely aesthetic; it was an engineering solution that allowed the massive 13-foot 4-inch Hamilton Standard propeller to clear the deck while keeping the landing gear short and sturdy for carrier operations.

The F4U entered U.S. Navy service in September 1942, though initial carrier qualification issues led to its first combat deployment with land-based Marine Corps squadrons in the Solomon Islands in February 1943. The Corsair quickly proved itself in combat, achieving an impressive 11:1 kill ratio against Japanese aircraft in the Pacific Theater. Famous Marine squadrons like VMF-214 "Black Sheep" under Major Gregory "Pappy" Boyington and VMF-121 achieved legendary status flying Corsairs. The British Fleet Air Arm, which received the aircraft under Lend-Lease as the Corsair Mk I through Mk IV, successfully operated them from carriers earlier than the U.S. Navy by developing specialized landing techniques.

Production was massive and distributed: Vought produced 12,571 aircraft at its Stratford, Connecticut facility; Goodyear Aircraft built 4,006 as the FG-1 and FG-1D at its Akron, Ohio plant; and Brewster Aeronautical manufactured 735 as the F3A-1 (though Brewster production was plagued by quality issues). Total Corsair production exceeded 12,500 aircraft between 1942 and 1953—one of the longest production runs of any piston-engine fighter in U.S. history.

Major variants included the F4U-1 initial production model, F4U-1A with raised cockpit for improved visibility, F4U-1C with four 20mm cannons, F4U-1D fighter-bomber with underwing hardpoints, F4U-4 with the R-2800-18W engine and four-blade propeller, F4U-5 with improved systems and all-weather capability (-5N night fighter, -5NL winterized, -5P photo-reconnaissance), AU-1 low-altitude ground-attack variant for Korea with armor protection, and F4U-7 final production variant for the French Navy. The Goodyear F2G "Super Corsair" was a specialized variant powered by the massive 3,000-hp Pratt & Whitney R-4360 Wasp Major 28-cylinder engine, designed for low-altitude interception of Japanese kamikaze aircraft, though it arrived too late for combat service.

The Corsair served in three wars: World War II in the Pacific, the Korean War (1950-1953) where it excelled in close air support, and the Football War between Honduras and El Salvador in 1969. The French Navy (Aéronavale) operated F4U-7s in Indochina and Algeria until 1964, making the Corsair one of the last piston-engine fighters in frontline military service. Today, the F4U Corsair remains highly prized by warbird collectors and aviation museums worldwide, with dozens of airworthy examples still flying at airshows, representing one of aviation's most iconic and successful designs.

Manuals Included in This Collection

• Vought F4U-4 Aircraft Maintenance Diagrams Manual - with colour illustration

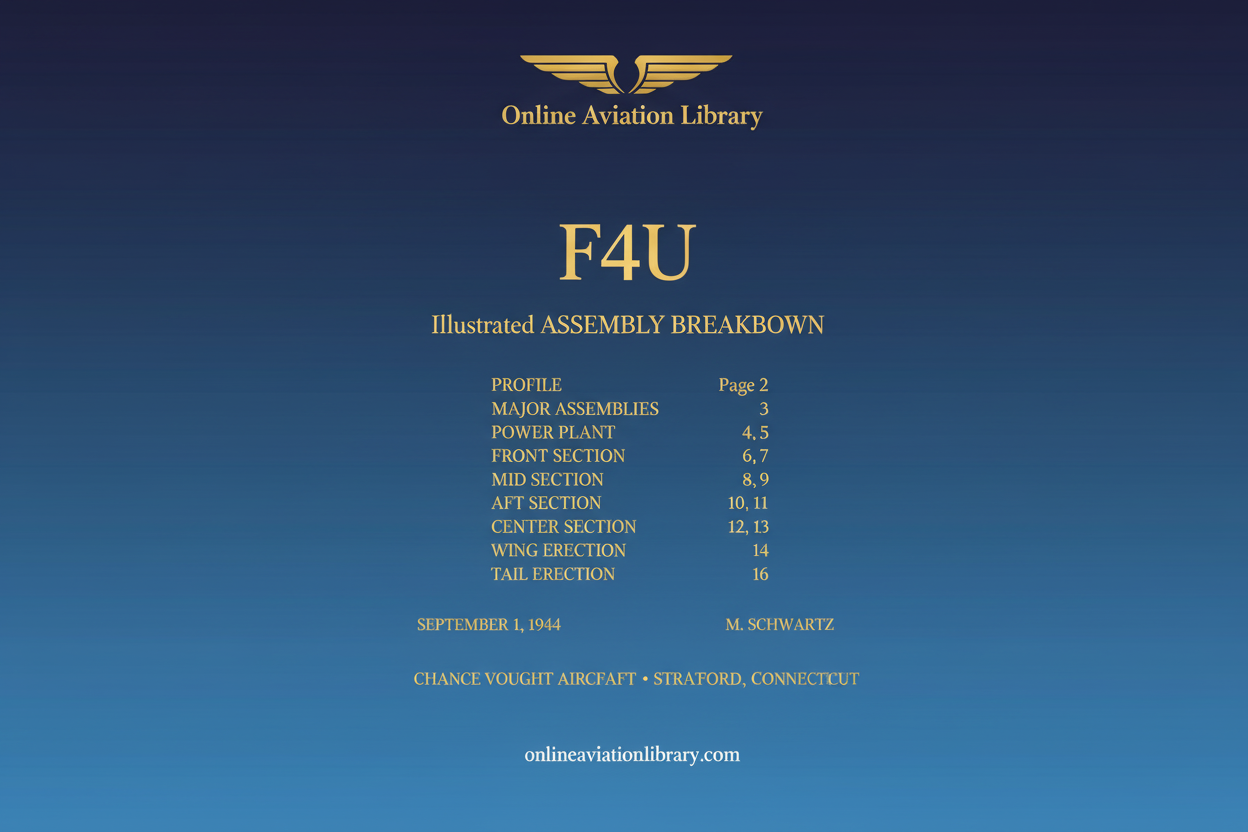

• Vought F4U Illustrated Assembly Parts Breakdown

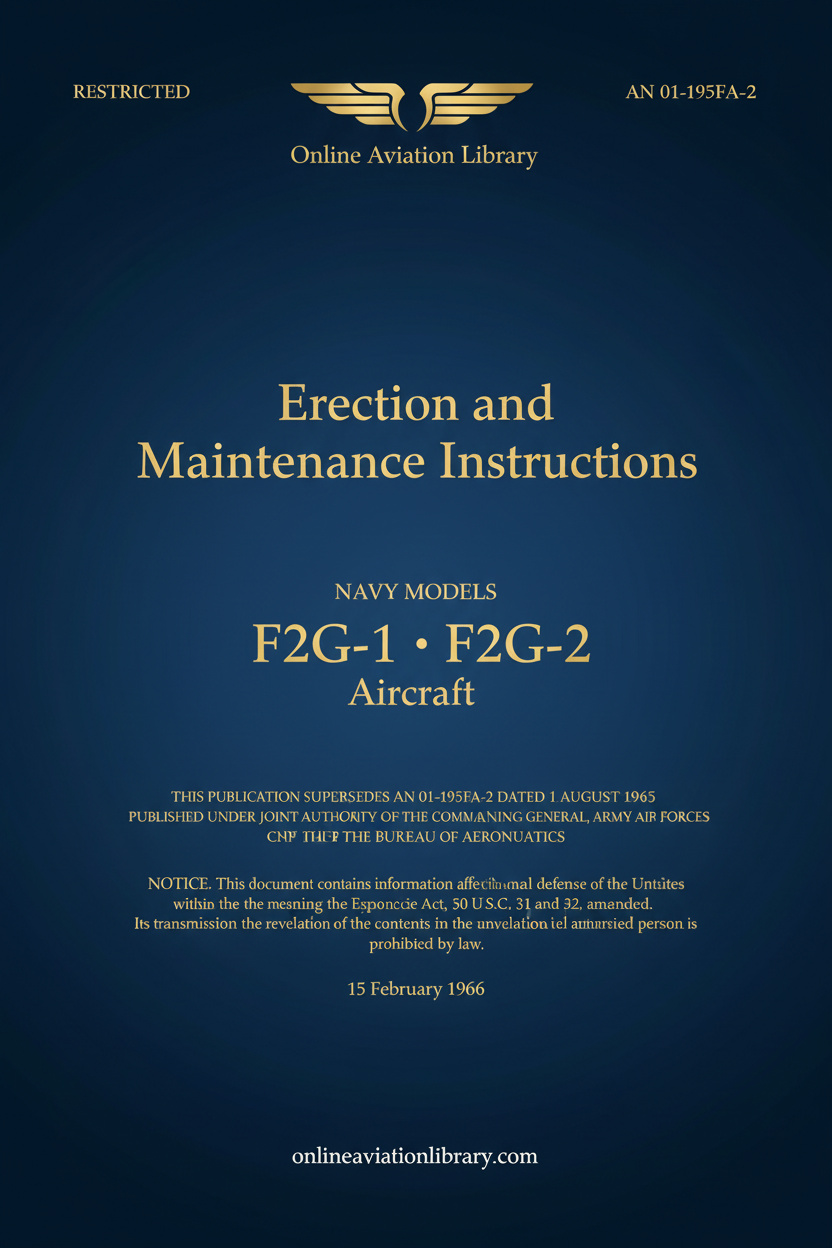

• Goodyear F2G-1, -2 "Super Corsair" Aircraft Erection and Maintenance Instructions Manual - AN 01-195FA-2 - 1946

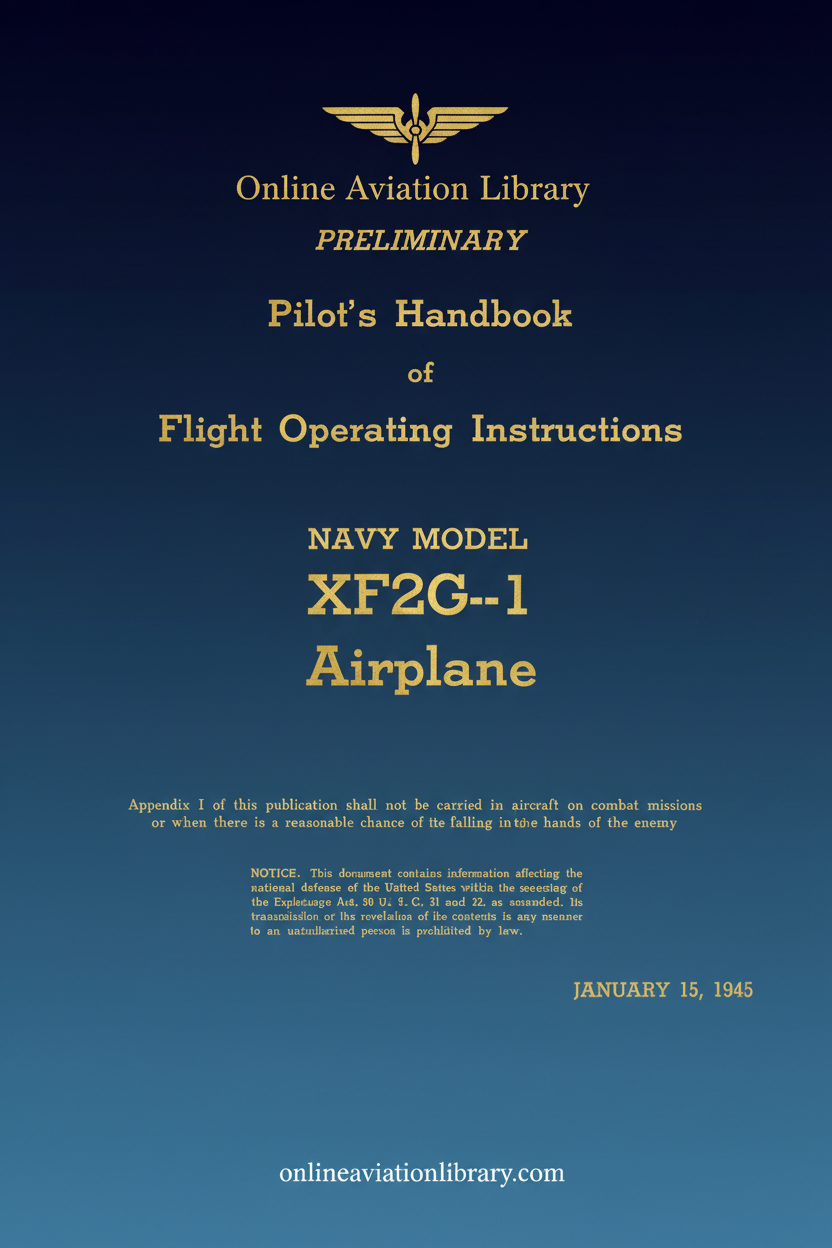

• Goodyear XF2G "Super Corsair" Aircraft Preliminary Pilot's Handbook of Flight Operating Instructions Manual - 1945
• Goodyear F2G "Super Corsair" Pilot's Handbook of Flight Operation Instructions, NAVY Models F2G-1, F2G-2 - AN 01-195FA-1, 1945
• Vought "Corsair" I - IV Aircraft Pilot's Notes Manual
• Vought F4U-5 Technical Description and Performance Manual, 1944 - 53 pages

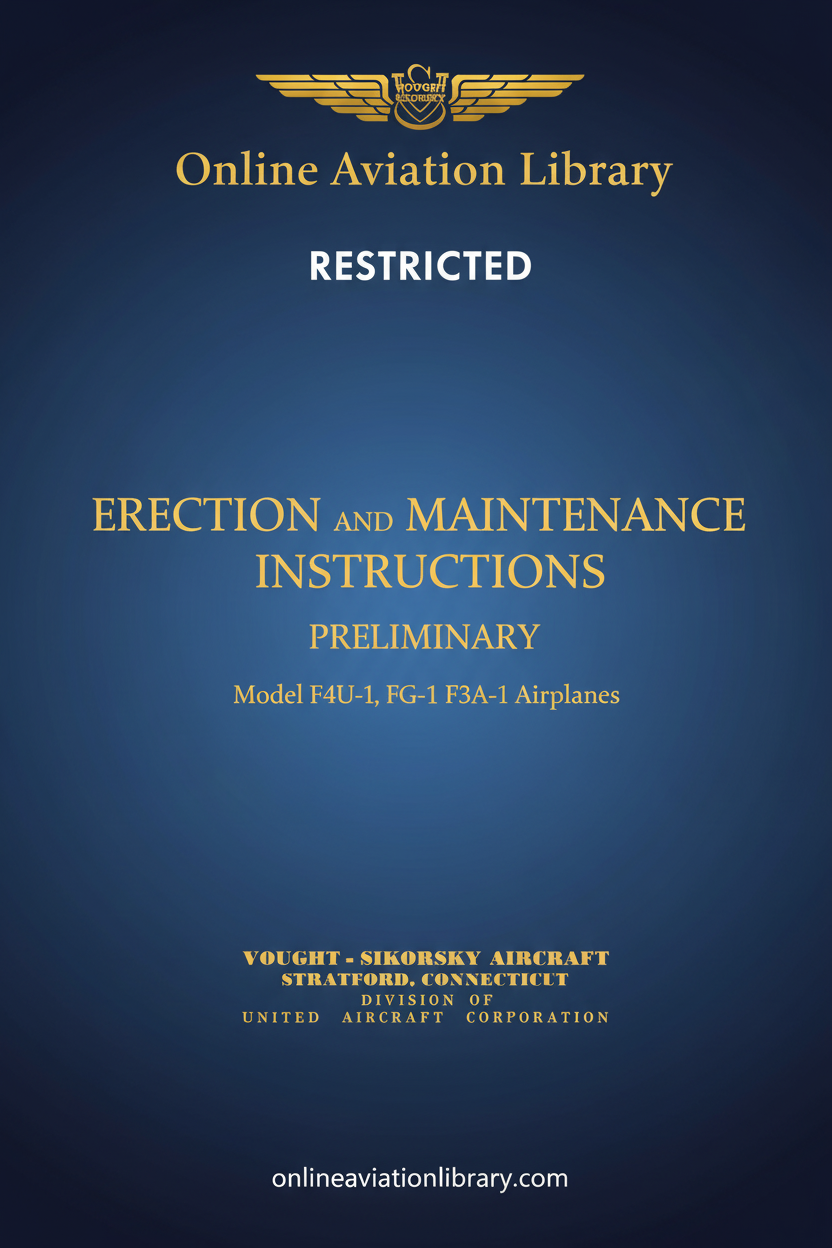

• Vought Sikorsky F4U Erection and Maintenance Instructions, Preliminary NAVY Models F4U-1, FG-1 F3A - Report 5562, 09-07-1942 - 204 pages
• Vought AU-1 Flight Erection and Maintenance Instructions, AN 01-45HGA-2, 1953 (Quality of documents from microfilms dark borders area)
• Vought F4U-5 Erection & Maintenance Instructions, NAVY Models F4U-5, -5N, -5NL, -5P AN 01-45HD-2, 1951
• Vought F4U-5 Erection & Maintenance Instructions, NAVY Models F4U-5, -5N, -5NL, -5P AN 01-45HD-2, 1948 - 773 pages
• Vought F4U-4 Aircraft Illustrated Parts Catalog Manual, AN 01-45HB-4, 1945
• Vought F4U-5 Pilot's Handbook of Flight Operation Instructions, NAVY Models F4U-5, -5N, -5NL, -5P AN 01-45HD-1, 1952 - 114 pages

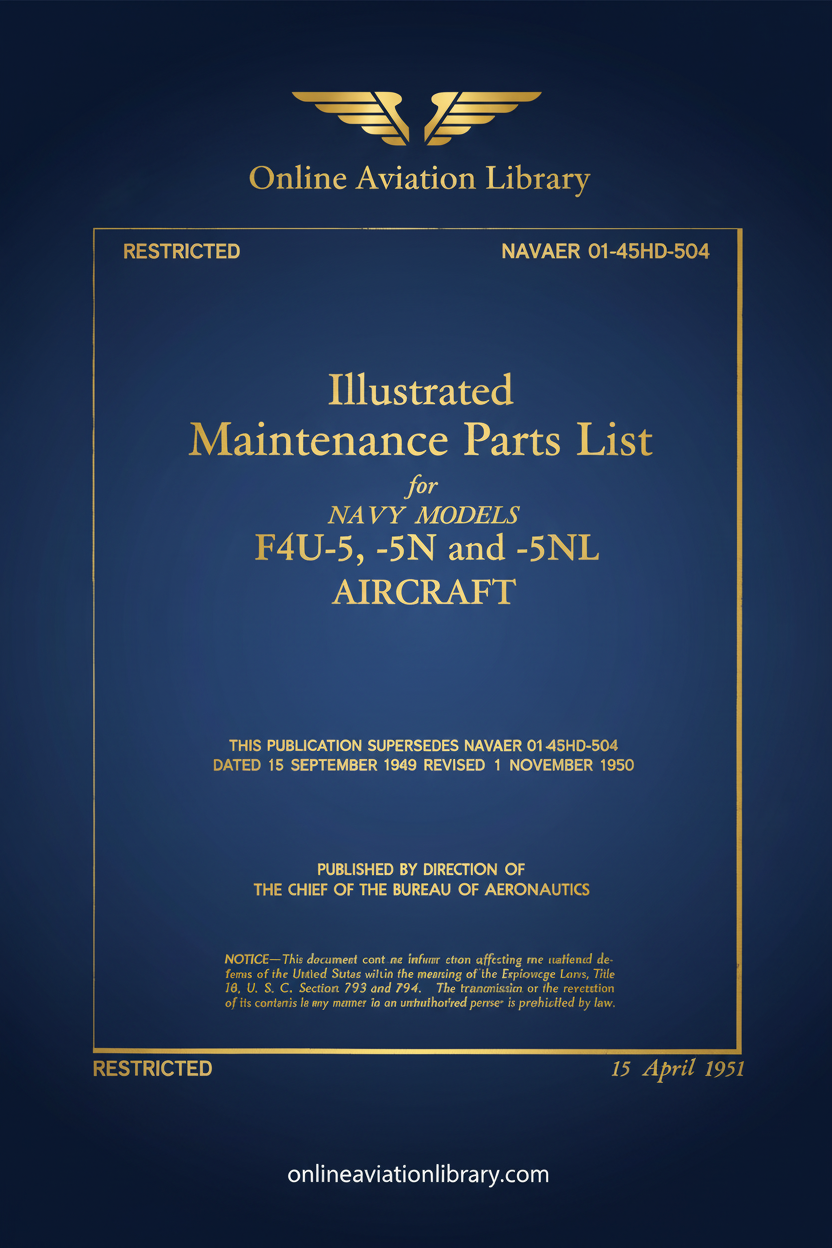

• Vought F4U Illustrated Maintenance Part List for Models F4U-5, -5N, -5NL, -5P AN 01-45HD-504, 1951 - 733 pages

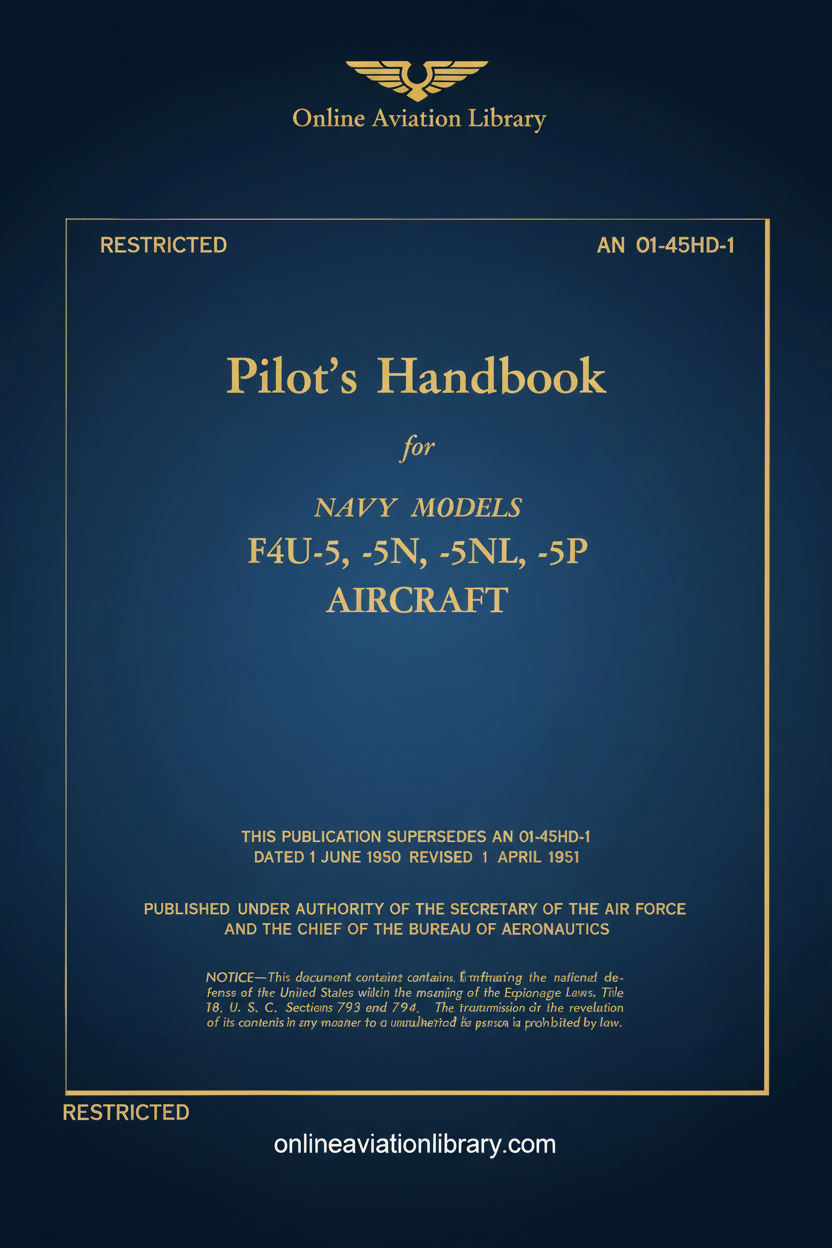

• Vought F4U-5 "Corsair" Aircraft Flight Pilot's Handbook Manual - 01-45HD-1, 1951

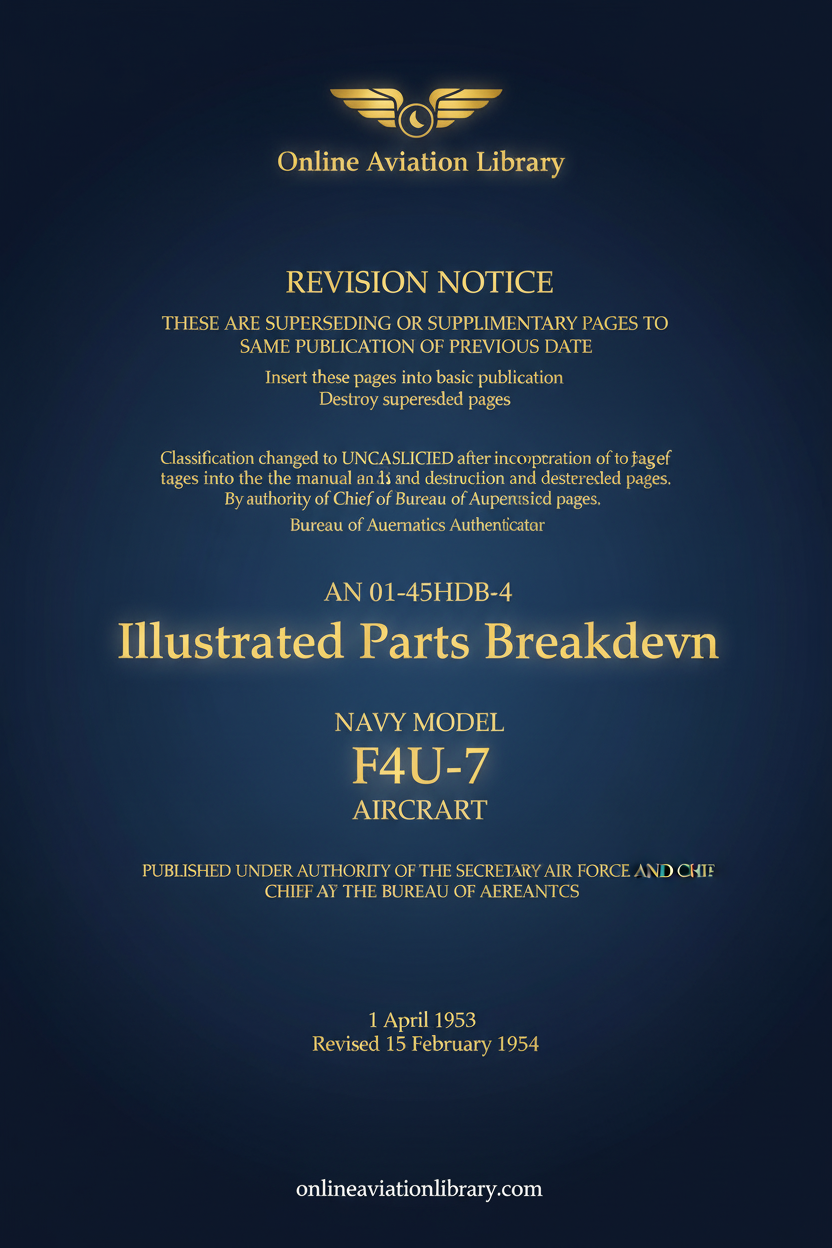

• Vought F4U-7 Illustrated Parts Breakdown, AN 01-45HDB-4, 1953

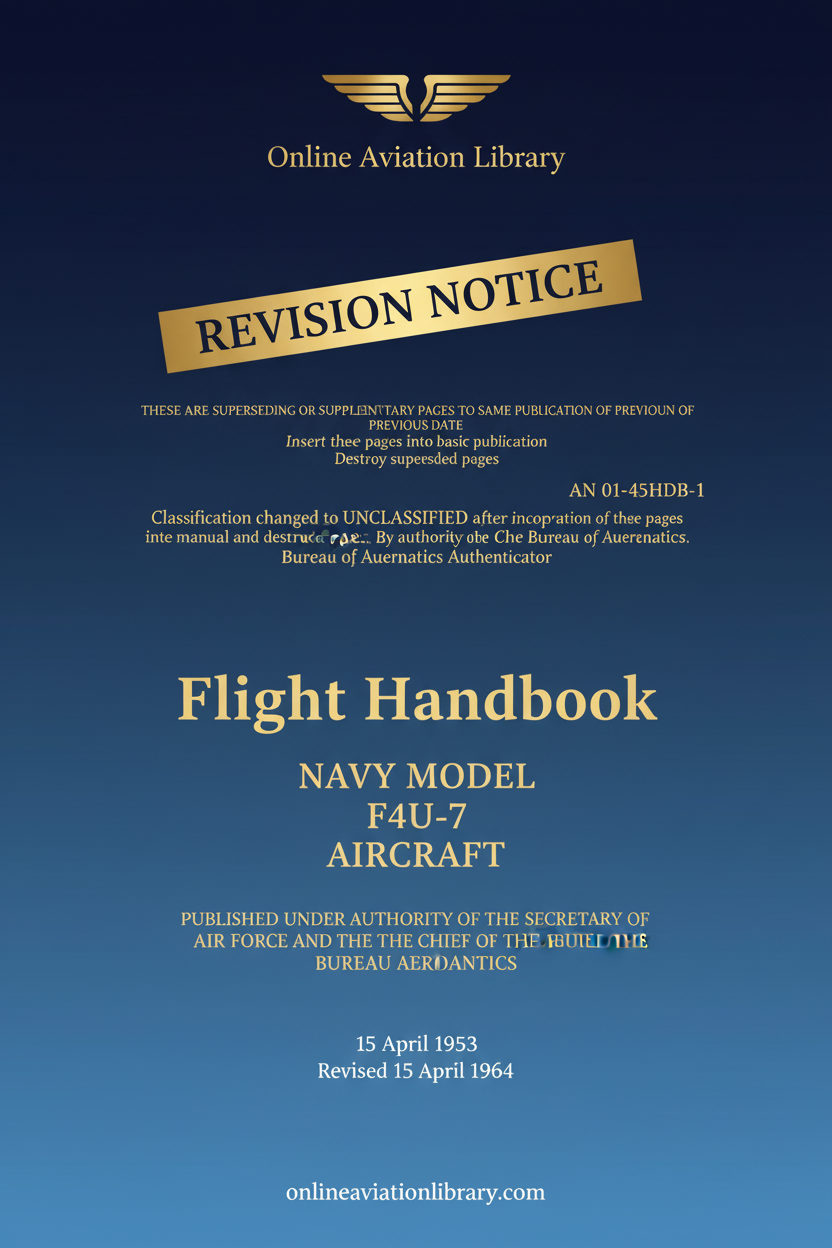

• Vought F4U-7 "Corsair" Aircraft Pilot's Handbook Flight Manual - 01-45HDB-1 - 1953
• Vought AU-1 Aircraft Illustrated Parts Catalog Manual, AN 01-45HGA-1, 1953 (Quality of documents from microfilms dark borders area)

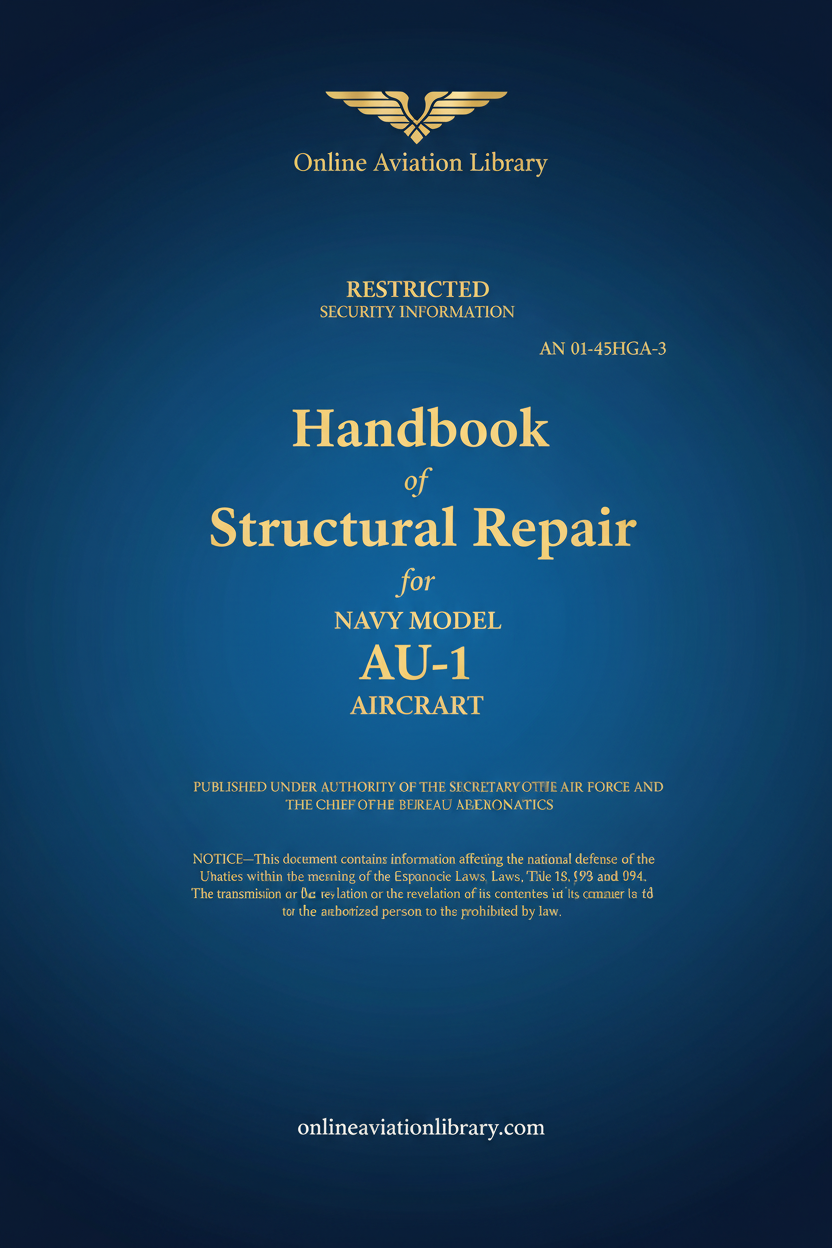

• Vought AU-1 and F4U-7 Structural Repair Handbook Manual, AN 01-45HGA-3, 1952

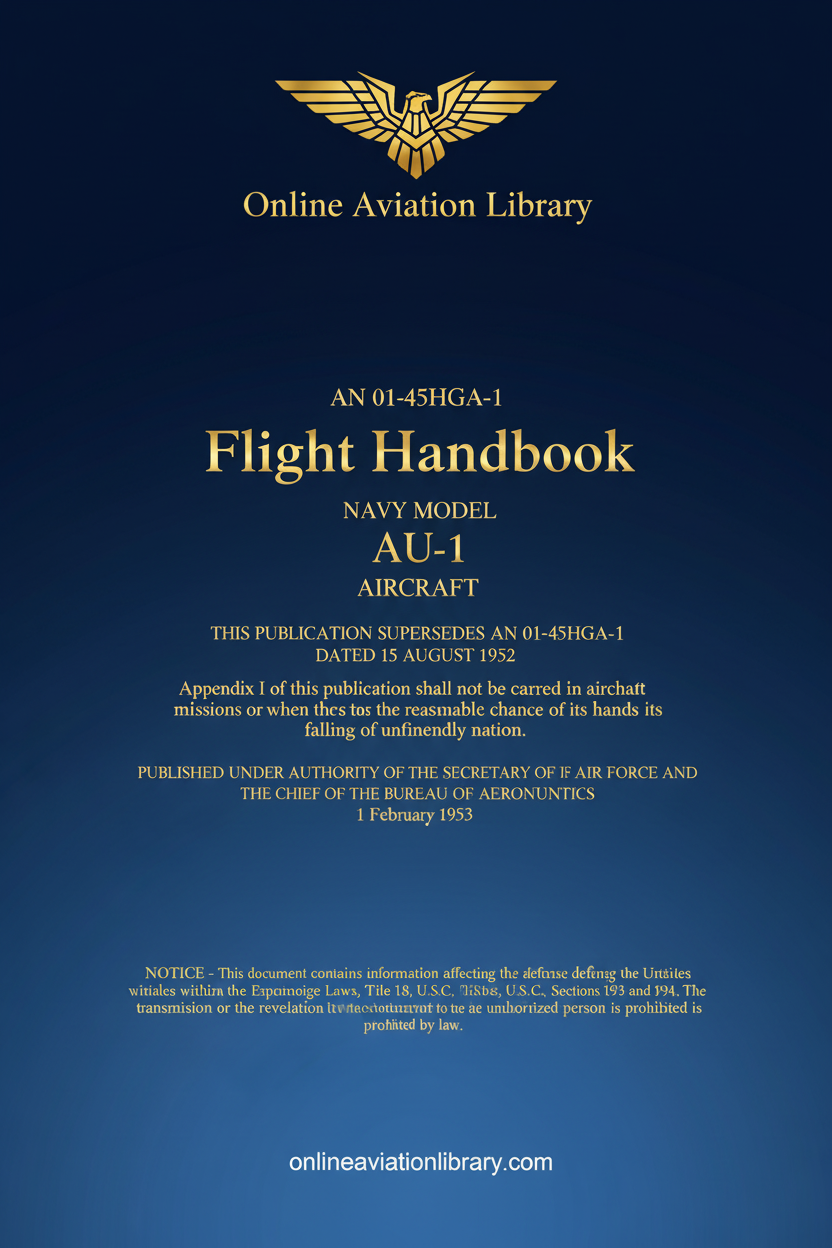

• Vought AU-1 Flight Handbook of Flight Operation Instructions, AN 01-45HGA-1, 1953 (Quality of documents from microfilms dark borders area)
• Vought F4U-4 "Corsair" Aircraft Service Handbook Manual

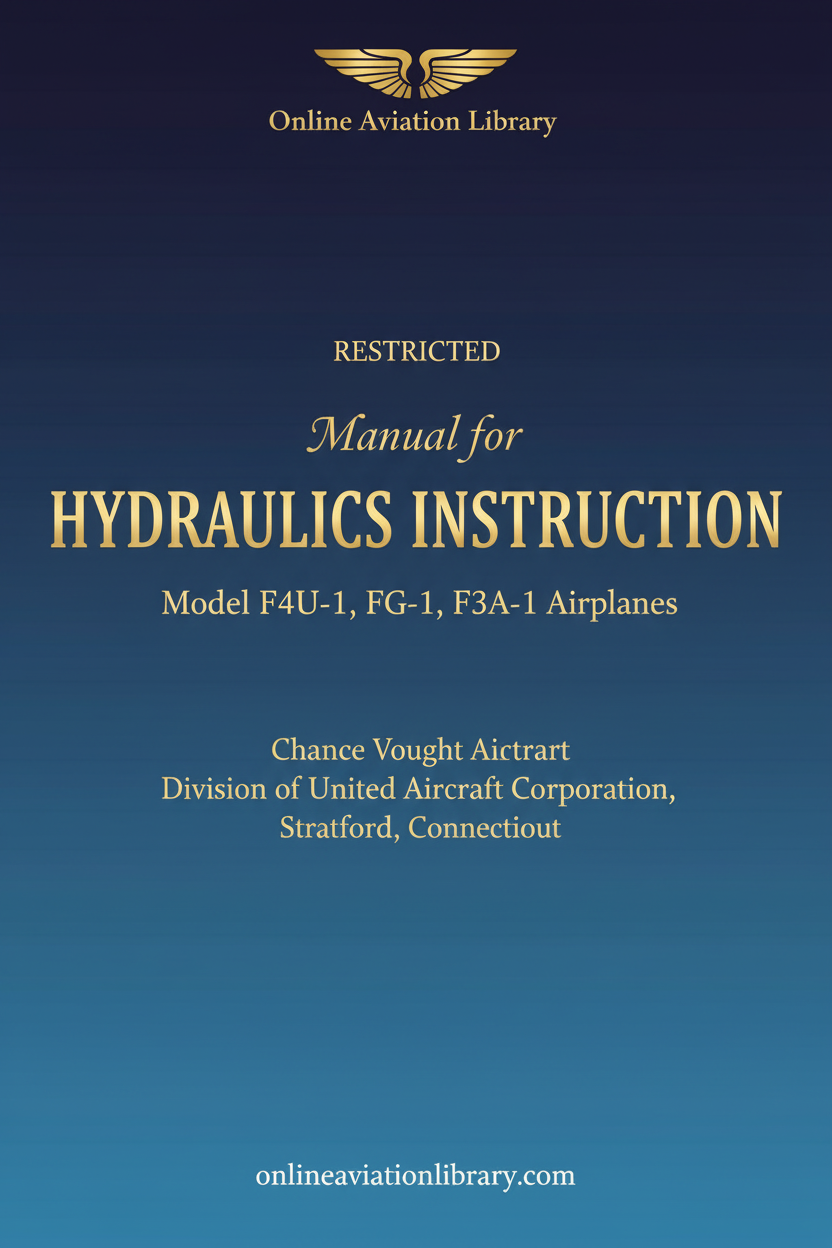

• Vought F4U-1, FG-1, F3A-1 Aircraft Hydraulic System Manual
• Vought F4U-4 F4U-4B Aircraft Illustrated Parts Catalog Manual, AN 01-45HB-4, 1948
• Vought F4U-4 Pilot's Handbook of Instructions for Structural Repair Manual AN 01-45HB-3, 1945
• Vought F4U-4 Aircraft Preliminary Erection & Maintenance Instructions, AN 01-45HB-2, 1944
• Vought F4U Pilot's Handbook of Flight Operation Instructions, F4U-A, B, AN 01-45HB-1, 1947

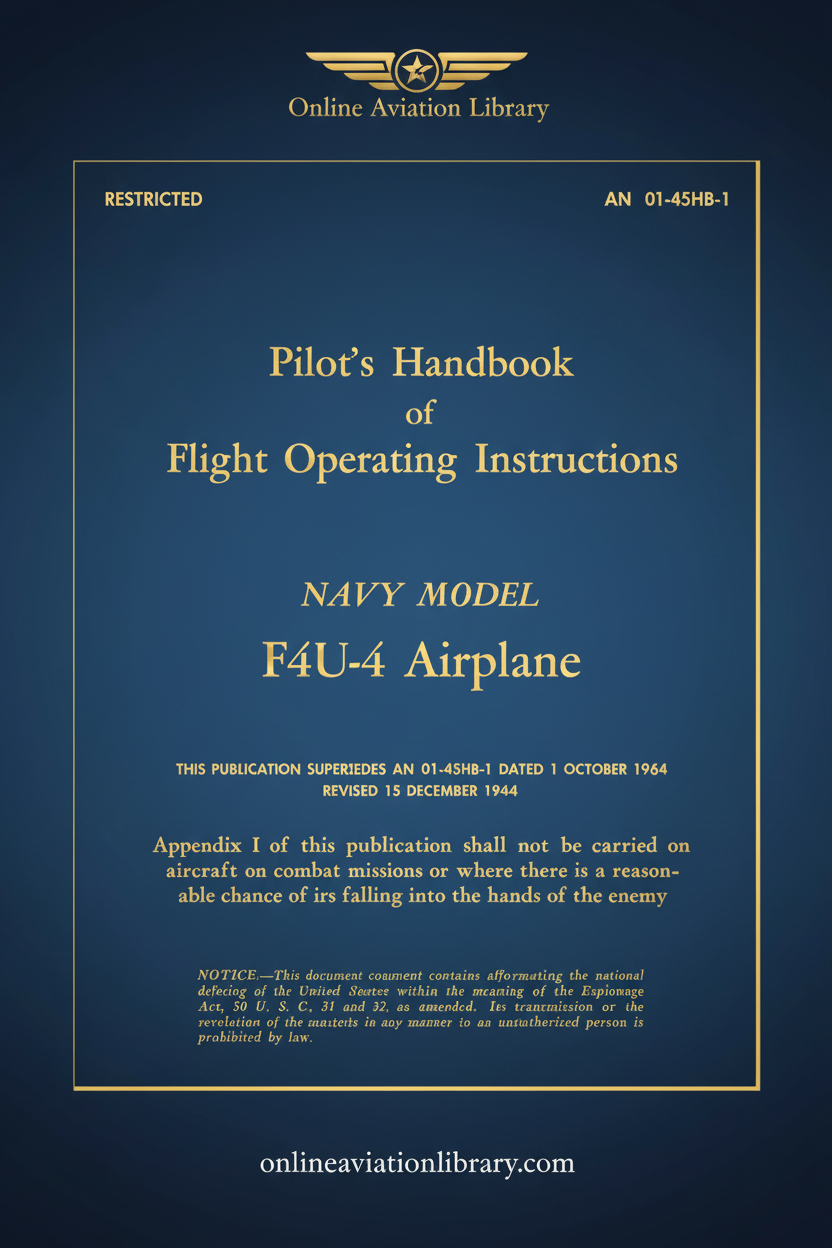

• Vought F4U-4 "Corsair" Aircraft Flight Pilot's Handbook Manual 01-45HB-1 - 1945
• Vought F4U Erection and Maintenance Handbook Manual, F4U-1, F3A-1, FG-1, F4U-1C, F4U-1D FG-1D AN 01-45HA-2, 1946
• Vought F4U Illustrated Parts Catalog Manual, F4U-1, F3A-1, FG-1, F4U-1C, F4U-1D FG-1D AN 01-45HA-4, 1945

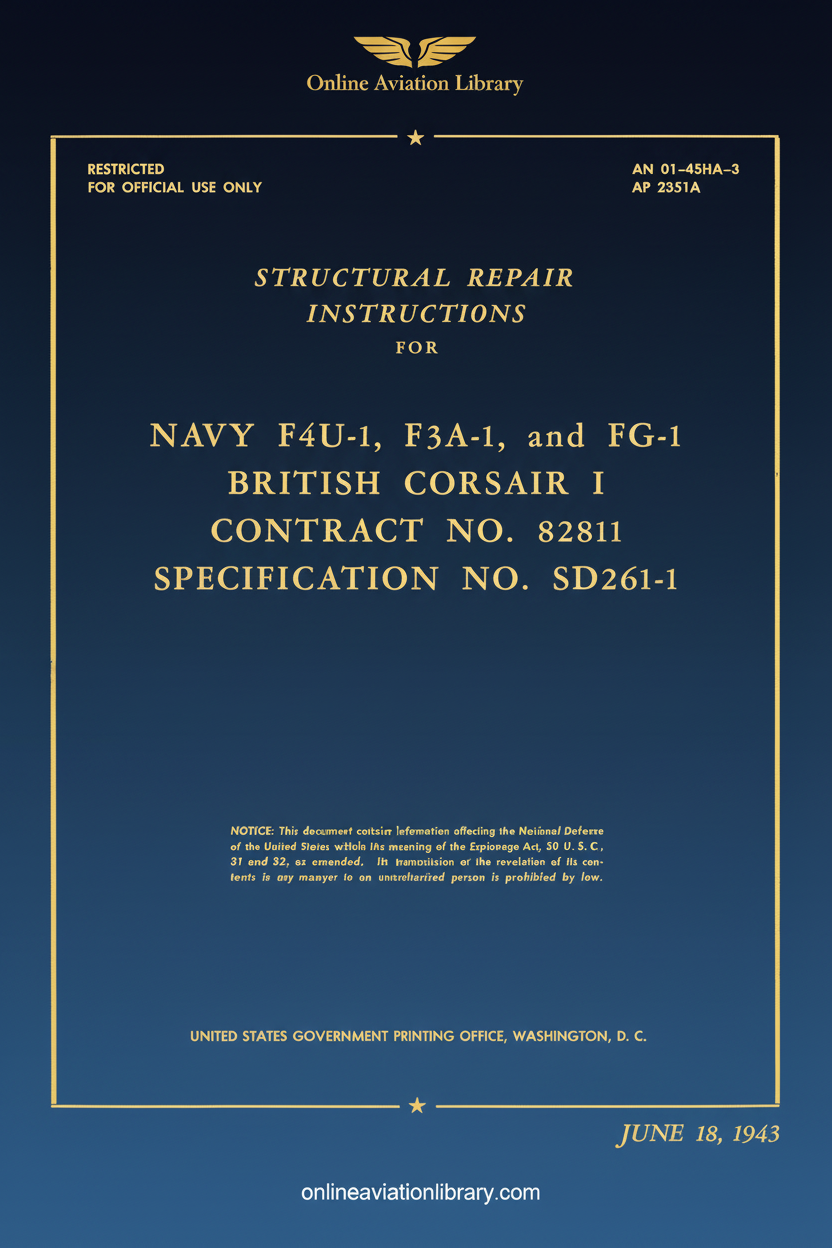

• Vought F4U Structural Repair Manual, NAVY Models F4U-1, F3A-1, FG-1, British Model Corsair I, II, III AN 01-45HA-3, AP 235A, 1943
• Vought F4U Structural Repair Manual, NAVY Models F4U-1, F3A-1, FG-1, British Model Corsair I, II, III AN 01-45HA-3, 1944
• Vought F4U Erection and Maintenance Handbook Manual, F4U-1, F3A-1, FG-1, AN 01-45HA-2, 1945

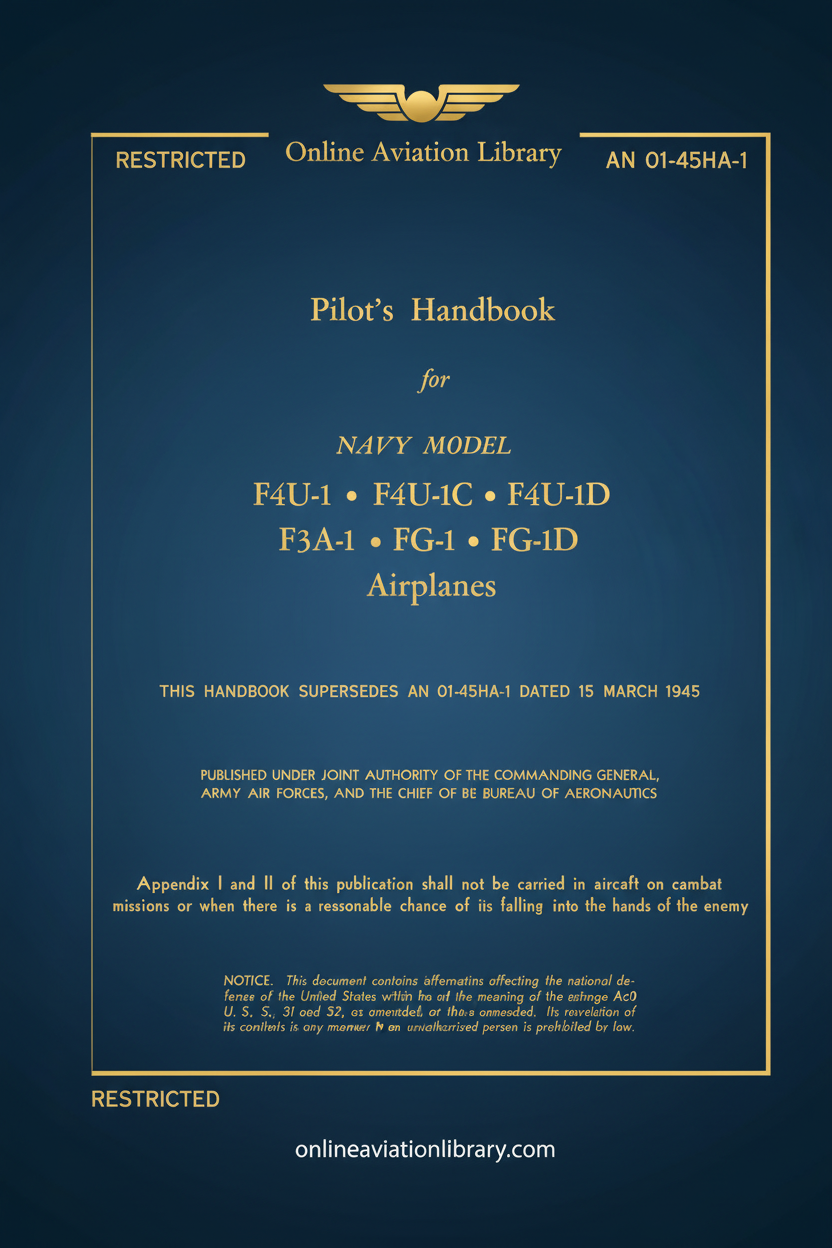

• Vought F4U Pilot's Handbook of Flight Operation Instructions, NAVY Models F4U-1, F4U-1C, F4U-1D, F3A-1, F3-A1D FG-1, FG-1D AN 01-45HA-1, 1945

This collection provides comprehensive coverage of all major F4U Corsair and F2G Super Corsair variants, including detailed maintenance procedures, flight operations, parts identification, structural repair techniques, and system-specific documentation. The manuals span the entire production history from early wartime models through the final variants produced in the early 1950s.

Engineering Norms and Standards

Design and Construction: The F4U Corsair was designed to U.S. Navy Bureau of Aeronautics specifications and certified under military airworthiness standards of the early 1940s. The aircraft featured all-metal semi-monocoque construction with a distinctive inverted gull-wing design that reduced landing gear length while providing propeller ground clearance. The wing employed a NACA 23018 root airfoil transitioning to NACA 23012 at the tip, with a total wing area of 314 square feet and a span of 41 feet. The center section was built as an integral fuel tank (237 gallons) using the innovative "wet wing" construction technique. Wing folding mechanisms allowed the outer panels to fold upward hydraulically for carrier storage, reducing span to approximately 17 feet.

Powerplant and Engine Mount: Early F4U-1 variants were powered by the Pratt & Whitney R-2800-8 Double Wasp 18-cylinder two-row radial engine producing 2,000 hp, while later F4U-4 models used the R-2800-18W with water injection producing 2,450 hp for takeoff. The F4U-5 series employed the R-2800-32W with 2,850 hp. The engine was mounted on a robust tubular steel engine mount assembly designed to absorb landing loads and isolate engine vibration. The massive 13-foot 4-inch Hamilton Standard Hydromatic three-blade constant-speed propeller (four-blade on F4U-4 and later) was the largest propeller fitted to a single-engine fighter of the era. The Goodyear F2G Super Corsair utilized the Pratt & Whitney R-4360 Wasp Major 28-cylinder four-row radial engine producing 3,000 hp, requiring significant structural reinforcement of the engine mount and airframe.

Performance Specifications: The F4U-1 achieved a maximum speed of 417 mph at 19,900 feet, with a service ceiling of 36,900 feet and a range of 1,015 miles. Climb rate was 2,890 feet per minute. The improved F4U-4 reached 446 mph at 26,200 feet with a climb rate of 3,870 feet per minute. The F4U-5 achieved 462 mph and could operate at altitudes exceeding 41,000 feet. The F2G Super Corsair, optimized for low-altitude performance, reached 431 mph at 16,400 feet with an exceptional climb rate of 4,400 feet per minute at sea level. Combat radius varied by mission profile and external stores, typically 300-400 miles with full combat load.

Structural Design and Load Factors: The Corsair airframe was designed to withstand load factors of +7.5g and -3.0g, with ultimate load factors of +11.25g and -4.5g (1.5 times limit load per military standards). The main landing gear featured oleo-pneumatic shock struts with a wide 12-foot track for stability during carrier landings. The tailwheel was fully retractable. Wing structure consisted of two main spars with stamped aluminum ribs and a stressed aluminum skin. Ailerons were fabric-covered on early models, transitioning to metal-covered on later variants. The fuselage was a semi-monocoque structure with stamped aluminum formers and stringers covered by riveted aluminum skin panels.

Fuel and Hydraulic Systems: Total internal fuel capacity was 237 gallons in the self-sealing center-section tank, with provisions for two 150-gallon drop tanks under the center section or one 175-gallon centerline drop tank. The hydraulic system operated at 1,050 psi and powered the landing gear retraction, wing folding mechanism, flaps, arresting hook, and cowl flaps. The system featured dual hydraulic pumps for redundancy. Fuel system included a mechanical fuel pump and electric auxiliary pump, with fuel pressure maintained at 14-18 psi.

Armament and Ordnance: Standard armament on F4U-1 through F4U-4 consisted of six Browning M2 .50-caliber machine guns (three per wing) with 400 rounds per gun. The F4U-1C variant mounted four 20mm AN/M2 cannons with 231 rounds per gun. Underwing hardpoints on fighter-bomber variants (F4U-1D, F4U-4, F4U-5, AU-1) could carry up to 4,000 pounds of ordnance including bombs, rockets, napalm tanks, or drop tanks. The AU-1 ground-attack variant featured additional armor protection (pilot armor, oil cooler armor) and could carry eight 5-inch HVAR rockets or two 1,000-pound bombs plus six 5-inch rockets.

Electrical and Avionics Systems: The electrical system was 24-volt DC powered by a 100-ampere engine-driven generator with a 24-volt battery for starting and emergency power. Radio equipment varied by variant and mission but typically included VHF command radio, IFF transponder, and radio compass. Night fighter variants (F4U-2, F4U-5N, F4U-5NL) were equipped with radar systems including the AN/APS-6 or AN/APS-19 radar mounted in a wing pod. The F4U-5P photo-reconnaissance variant carried camera equipment in the fuselage.

Manufacturing Standards: Production aircraft were built to U.S. Navy Bureau of Aeronautics specifications and military standards (MIL-SPEC) for materials, processes, and quality control. Vought, Goodyear, and Brewster factories employed detailed manufacturing drawings, tooling fixtures, and inspection procedures to ensure interchangeability of parts across manufacturers. Structural components were fabricated from 2024-T3 and 7075-T6 aluminum alloys, with 4130 chromoly steel used for high-stress components such as landing gear and engine mounts. All fuel tanks and fuel system components met self-sealing and fire-resistance requirements per military specifications.

Restoration & Operational Considerations

The Vought F4U Corsair represents one of the most iconic and recognizable warbirds in aviation history, yet it remains among the rarest actively flying WWII fighters. Understanding the current state of the surviving fleet is essential for anyone involved in Corsair restoration, preservation, or historical research:

Current Airworthy Fleet and Survivors

• Actively Airworthy: Approximately 10 to 15 F4U Corsairs are considered actively airworthy worldwide, representing an extremely small percentage of the original 12,582 aircraft produced
• Total Known Survivors: Approximately 30 to 40 F4U Corsair airframes exist today in various states of preservation, including airworthy aircraft, restoration projects, static museum displays, and stored examples
• Survival Rate Context: With only 30-40 survivors from over 12,500 produced, the F4U has a survival rate of roughly 0.3%—significantly lower than contemporaries like the P-51 Mustang (2%) or T-6 Texan (2-3%). This rarity makes each surviving Corsair extraordinarily valuable from historical, cultural, and monetary perspectives
• Active Restoration Projects: Multiple F4U airframes are currently undergoing long-term, detailed restoration projects globally, including at least two significant projects in Australia (F4U-1 and F4U-5) and restoration efforts in New Zealand
• Geographic Distribution: Airworthy Corsairs are distributed globally, with concentrations in the United States, Australia, New Zealand, and Europe. Several examples are maintained by military museums and commemorative air forces
• Variant Distribution: Most surviving airworthy examples are F4U-1, F4U-4, and F4U-5 variants, with the rare F2G Super Corsair represented by only a handful of survivors (primarily in racing configurations)

Restoration Challenges and Considerations

• Extreme Parts Scarcity: With such a small surviving fleet, original F4U parts are exceptionally rare and expensive. Many components require custom fabrication, reverse engineering from original drawings, or adaptation from similar aircraft. The inverted gull-wing structure presents unique fabrication challenges
• Engine Availability: The Pratt & Whitney R-2800 Double Wasp engine, while more common than the airframe (also used in P-47, F6F, and other types), still requires specialized overhaul facilities and significant investment. R-2800 overhauls typically cost $150,000-$250,000 depending on variant and condition
• F2G Super Corsair Challenges: The rare F2G variant powered by the R-4360 Wasp Major engine faces even greater restoration challenges due to the extreme rarity of the engine (28-cylinder, 3,000 hp) and specialized airframe reinforcements. Only a handful of R-4360 engines remain in airworthy condition
• Wing Folding Mechanism: The hydraulically-actuated wing folding system is complex and requires specialized knowledge to restore and maintain. Many static display Corsairs have non-functional wing fold mechanisms
• Inverted Gull-Wing Structure: The distinctive wing design requires specialized jigs and tooling for structural repairs. The center-section "wet wing" fuel tank construction demands particular attention to sealing and corrosion prevention
• Carrier Equipment: Arresting hooks, catapult attachments, and carrier-specific equipment are often removed or non-functional on civilian warbirds, though some restorers maintain these systems for historical authenticity
• Documentation Requirements: Most airworthy Corsairs operate under FAA Experimental-Exhibition or Limited category certificates, requiring approved maintenance programs based on historical military technical orders and manufacturer documentation (such as this collection)
• Structural Integrity: Given the age of surviving airframes (80+ years), comprehensive structural inspections are critical, including wing spar examinations, fuselage stress point assessments, landing gear structural integrity, and corrosion monitoring throughout the airframe
• Historical Authenticity vs. Safety: Restorers face difficult decisions balancing period-correct restoration with modern safety improvements such as updated fuel systems, modern avionics, improved braking systems, and structural reinforcements

Operational Considerations

• Operating Costs: F4U Corsairs are among the most expensive warbirds to operate, with high fuel consumption (R-2800 consumes 100+ gallons per hour at cruise power), costly engine overhauls, specialized maintenance requirements, and insurance premiums reflecting the aircraft's rarity and value
• Pilot Qualification: Operating an F4U requires extensive pilot experience including tailwheel endorsement, high-performance aircraft experience, and ideally warbird-specific training. The Corsair's challenging ground handling characteristics (long nose limiting forward visibility, narrow-track landing gear, powerful engine torque) demand respect and proficiency
• Carrier Landing Heritage: While most civilian Corsairs never operate from carriers, the aircraft's design reflects its naval heritage with robust landing gear, excellent low-speed handling, and powerful control authority—characteristics that make it a demanding but rewarding aircraft to fly
• Maintenance Intensity: The F4U requires meticulous maintenance attention, particularly to the hydraulic systems (landing gear, wing fold, flaps), engine cooling systems, and complex fuel system. Preventive maintenance is critical given parts scarcity

Operational Activities

• Airshow Performances: Airworthy F4U Corsairs are highly sought-after airshow performers, often representing Marine Corps and Navy aviation heritage. Their distinctive appearance and sound make them crowd favorites
• Heritage Flights: Corsairs regularly participate in military heritage flight programs, flying alongside modern military jets to honor naval aviation history and the sacrifices of WWII and Korean War aviators
• Museum Collections: Several major aviation museums maintain airworthy F4U Corsairs, including the Commemorative Air Force, Flying Heritage & Combat Armor Museum, and Planes of Fame Air Museum
• Film and Media: The F4U's iconic status ensures continued appearances in film productions, documentaries, and commemorative events, though the small airworthy fleet limits availability
• Racing Heritage: Several F2G Super Corsairs and modified F4U-1 variants have competed in unlimited air racing, though most racing Corsairs are now retired to museums or private collections

Community and Resources

• Corsair Owner and Enthusiast Groups: The small community of F4U owners and restorers maintains close connections, sharing technical knowledge, parts sourcing information, and restoration expertise
• Warbird Organizations: The Commemorative Air Force, Warbirds of America (EAA), and similar organizations provide community support, technical resources, and operational guidance
• Museum Archives: The National Naval Aviation Museum, Smithsonian National Air and Space Museum, and National Museum of the Marine Corps maintain extensive F4U archives and technical documentation
• Online Communities: Warbird forums, WarbirdRegistry.org, and specialized F4U discussion groups provide platforms for technical discussions, restoration advice, and historical research

This collection provides the foundational technical documentation essential for anyone involved in F4U Corsair restoration, preservation, or historical research. Given the extreme rarity of surviving airframes and the complexity of restoration projects, these authentic manuals represent irreplaceable reference materials for maintaining these legendary fighters to airworthy standards and preserving them for future generations.

Specialized Documentation

Supplemental Type Certificates and Modifications: Many surviving airworthy F4U Corsairs have been modified under FAA Supplemental Type Certificates (STCs) for civilian operation, including modern avionics installations, updated electrical systems, and safety modifications. Some warbirds have been converted with turbine powerplants or modified fuel systems for improved reliability and reduced maintenance. Restorers and operators should consult the FAA registry and applicable STCs for specific aircraft modifications.

Service Bulletins and Airworthiness Directives: While the F4U Corsair is no longer supported by an active Type Certificate holder (Vought Aircraft Industries was acquired by Northrop Grumman, and the F4U type certificate is no longer actively maintained), historical Service Bulletins and Navy Technical Directives remain valuable references for restoration and maintenance. Warbird operators typically work under FAA Experimental-Exhibition or Limited category certificates, which require adherence to approved maintenance programs based on historical military technical orders and manufacturer documentation.

Performance Profiles and Pilot Notes: This collection includes authentic pilot's handbooks with detailed performance charts, takeoff and landing data, fuel consumption tables, range profiles, and emergency procedures. British Fleet Air Arm Pilot's Notes provide additional operational insights and carrier landing techniques developed for Royal Navy operations. These documents are invaluable for current warbird pilots and aviation historians studying operational procedures and tactics.

Where to Find Additional Documentation

Official Support: While there is no current Type Certificate holder actively supporting the F4U Corsair, the National Naval Aviation Museum in Pensacola, Florida, and the National Museum of Naval Aviation maintain extensive archives of F4U documentation. The Smithsonian National Air and Space Museum also holds significant Corsair technical records and engineering drawings.

Historical Archives: The F4U Corsair community is supported by several active organizations including the Commemorative Air Force (CAF), Warbirds of America (EAA), and various Corsair-specific type clubs and owner groups. Online forums such as WarbirdRegistry.org and military aviation forums provide community knowledge, restoration advice, and technical discussions. The American Aviation Historical Society (AAHS) and Air Force Historical Research Agency (AFHRA) maintain research archives with additional technical documentation and operational histories.

Specialty Vendors: In addition to Online Aviation Library, several specialty vendors provide F4U Corsair parts, restoration services, and technical documentation including Aero Trader, Courtesy Aircraft, and various warbird parts suppliers. These vendors often maintain technical libraries and can provide guidance on parts sourcing, restoration techniques, and airworthiness compliance for Experimental and Limited category aircraft.

Format and Delivery

All manuals are provided as high-resolution PDF files, optimized for on-screen viewing and printing. Files are delivered via secure download link immediately upon purchase. The complete collection is organized in a logical folder structure by variant and document type for easy navigation and reference.

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler, or aircraft enthusiast. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft/engines/helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.

This digital compilation, structure, indexing, and presentation are © Sicuro Publishing.
