Comprehensive Allison T56/T701/501 Turboprop Engine Technical Manuals
Access the comprehensive technical documentation for the legendary Allison T56, T701, and Model 501 turboprop engine family. This digital collection provides maintenance personnel, engineers, and aviation enthusiasts with detailed operational, maintenance, and overhaul procedures for one of the most successful and enduring turboprop engines in aviation history.
What's Included:
- Maintenance manuals with detailed procedures and specifications
- Technical orders and service bulletins
- Parts catalogs with illustrated breakdowns
- Overhaul and repair instructions
- Performance data and operational limits
- Troubleshooting guides and diagnostic procedures
Historical Note
The Allison T56 turboprop engine stands as one of the most successful and longest-serving aircraft engines in aviation history. First run in 1954 and entering service in 1956, the T56 was designed to meet the U.S. military's need for a powerful, reliable turboprop engine capable of propelling large transport and maritime patrol aircraft. Developed by Allison Engine Company (later Rolls-Royce), this revolutionary powerplant would go on to serve for over seven decades.

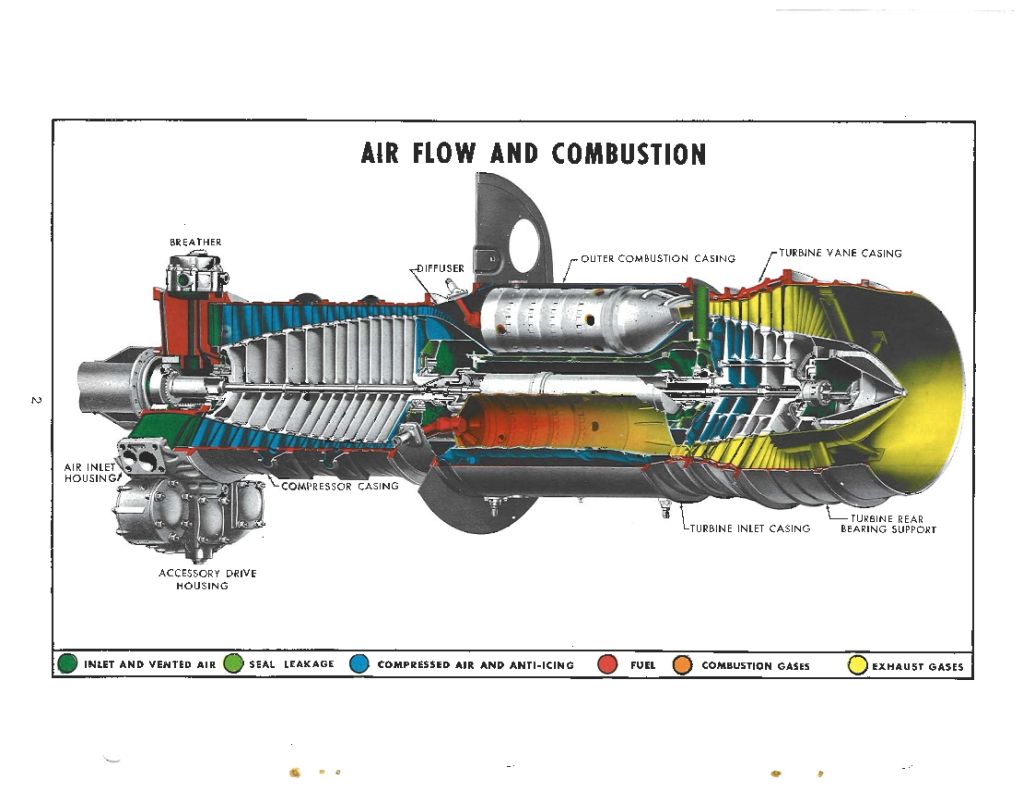

The T56's innovative design featured a 14-stage axial-flow compressor, six combustion chambers, and a four-stage turbine section, producing between 3,750 and 4,910 shaft horsepower depending on the variant. Its most famous application came with the Lockheed C-130 Hercules tactical transport, which has been powered exclusively by T56 engines since 1956. The engine also powers the Lockheed P-3 Orion maritime patrol aircraft, Grumman E-2 Hawkeye carrier-based early warning aircraft, and numerous other military platforms.
The commercial variant, designated Model 501, brought the same proven technology to civil aviation, powering aircraft such as the Convair 580/600/640 conversions, Lockheed L-188 Electra airliner, and various regional turboprops. The T701 designation covers specific military variants with enhanced capabilities for specialized applications.
With over 18,000 engines produced and more than 200 million flight hours accumulated, the T56/501 family has demonstrated exceptional reliability, maintainability, and longevity. Continuous improvements and upgrades have kept the engine competitive across multiple generations of aircraft. The T56's remarkable service life—still powering C-130s and P-3s in active military service today—stands as a testament to its robust design and represents one of the most successful turboprop programs in aerospace history.
Perfect For:
- Aircraft maintenance technicians and engineers
- Aviation maintenance training programs
- Military and civil aviation operators
- C-130 Hercules and P-3 Orion maintenance crews
- Aviation historians and researchers
- Technical library collections
Digital Download: Instant access to high-resolution PDF files. Lifetime access with no shipping required.
Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
