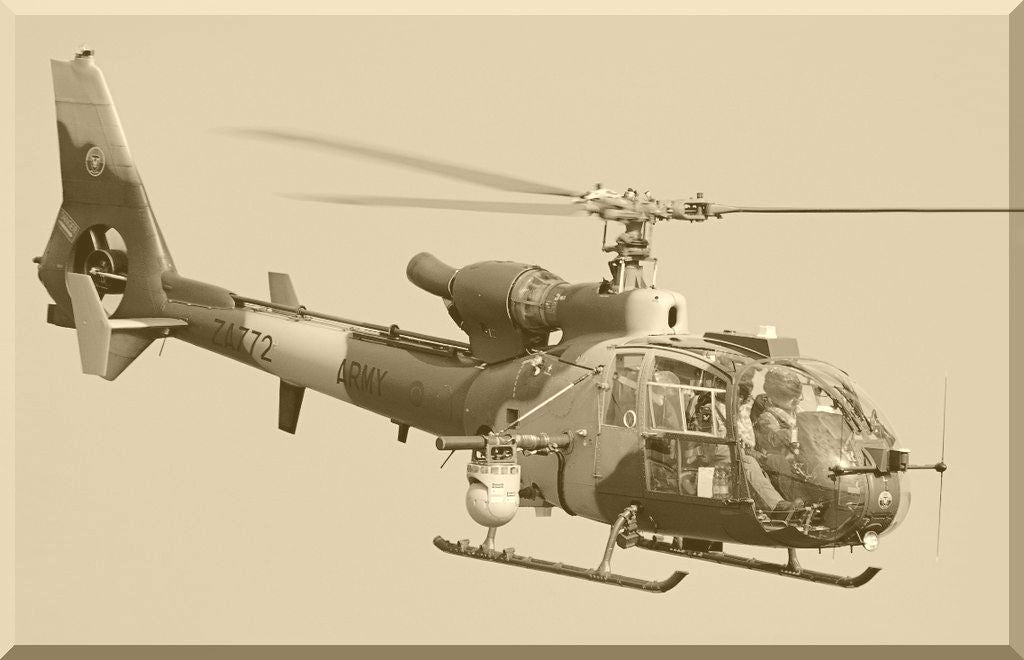

The Westland Gazelle represents a distinguished chapter in British military aviation history. Originally developed through Anglo-French collaboration in the late 1960s, the Gazelle entered Royal Air Force service in 1973 as a versatile light helicopter for training, reconnaissance, and liaison roles. The aircraft's exceptional agility, excellent visibility, and reliable turbine engine made it a favorite among military pilots for over four decades.

Throughout its service life, the Gazelle proved invaluable across multiple variants: the AH Mk.1 for the Army Air Corps in attack and reconnaissance roles, the HT Mk.2 and HT Mk.3 for RAF pilot training, and specialized configurations for the Royal Navy. The helicopter saw active deployment in numerous operations worldwide, earning a reputation for dependability and performance in demanding conditions.

This Comprehensive Collection Includes:

Primary Manuals:

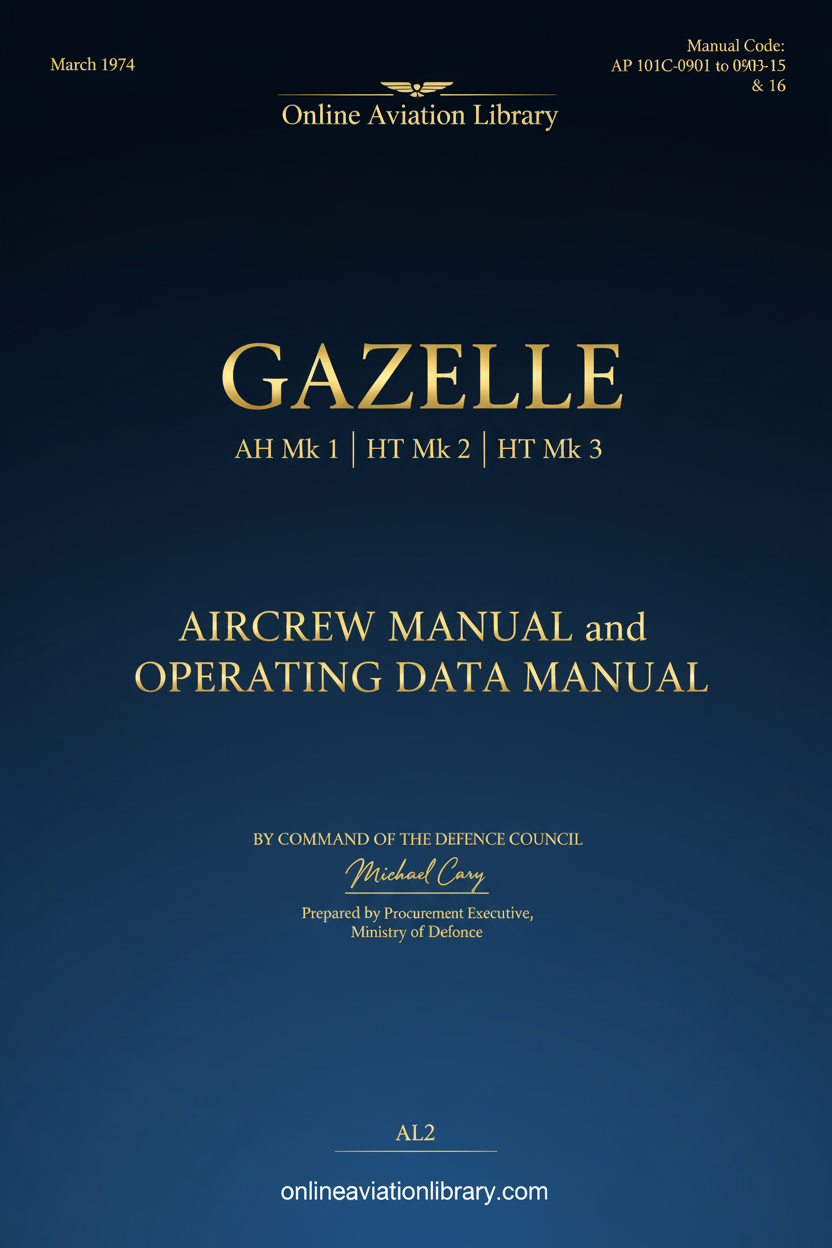

• A.P. 1001C-0901 to 0903-15-16 - Aircrew and Operating Data Manual (1974)
• A.P. 1001C-0901 to 0903-3-A - Illustrated Parts Catalog Manual (1984)

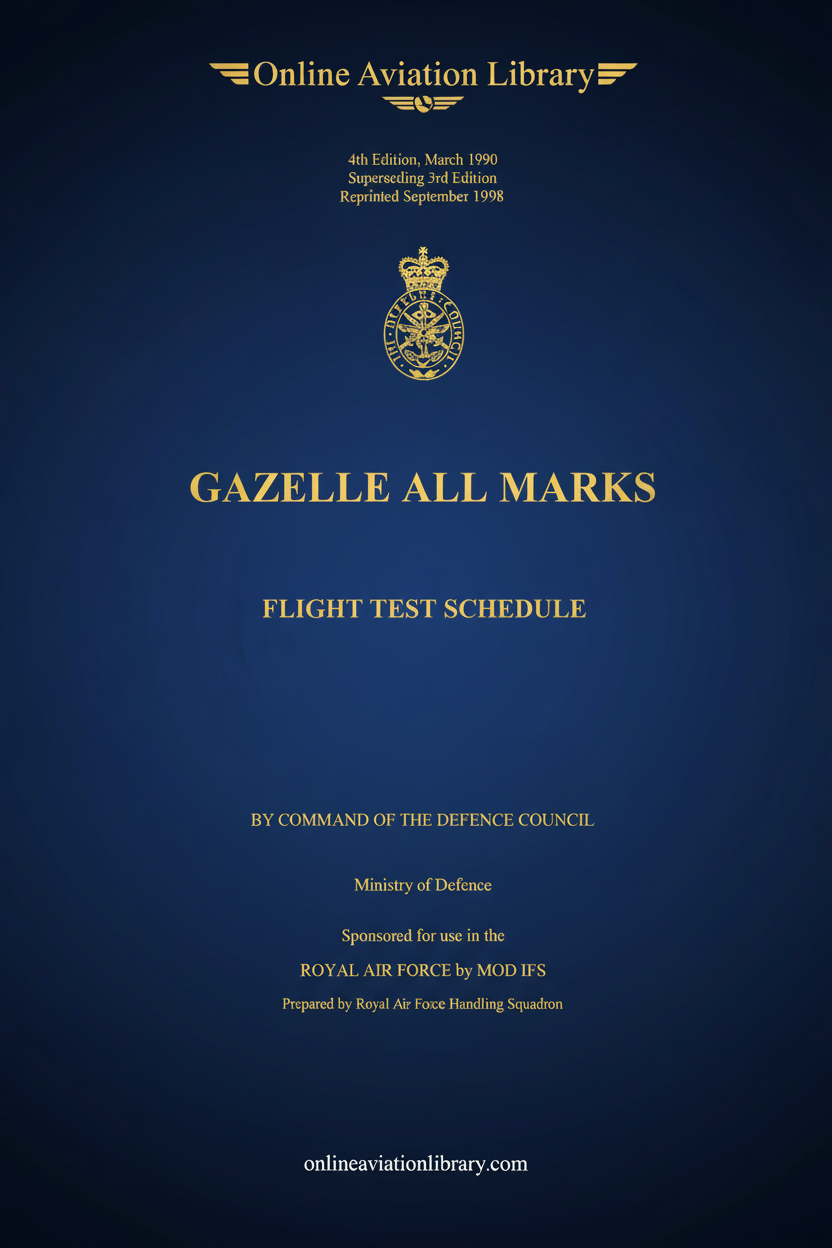

• A.P. 1001C-0900-5M - Flight Test Schedule Manual, All Marks (1990)

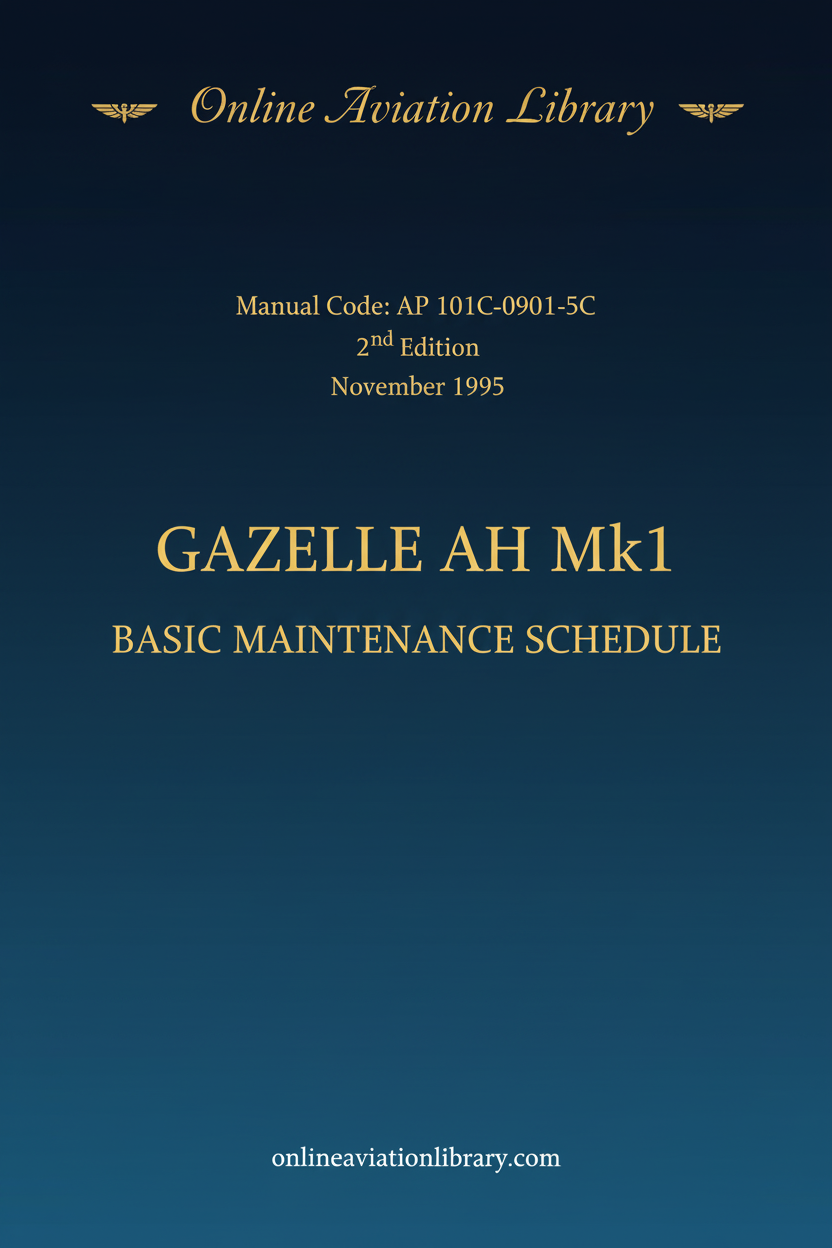

• A.P. 1001C-0900-5C - Basic Maintenance Schedule Manual (1990)
• A.P. 1001C-0901 thru 0903-5C - Basic Maintenance Schedule Manual (1998)

Aircraft Maintenance Manuals (AMM):

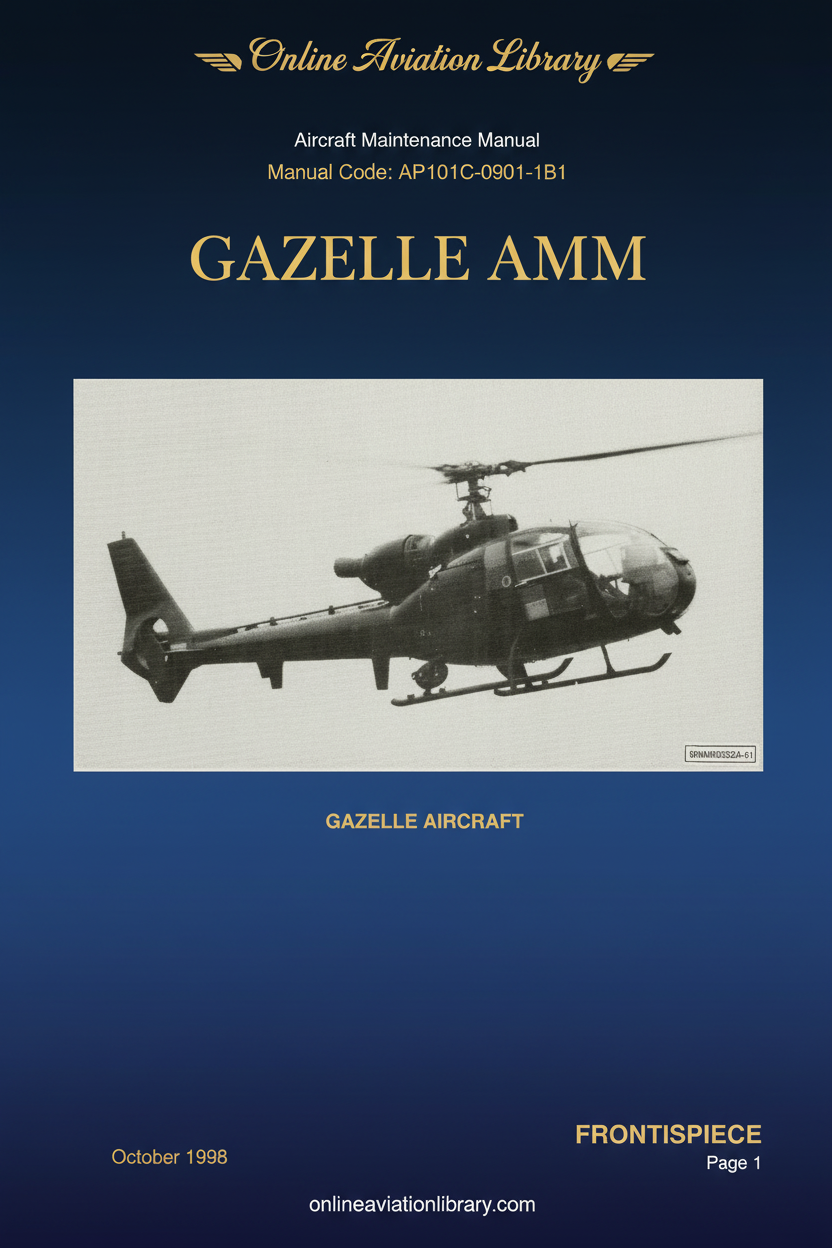

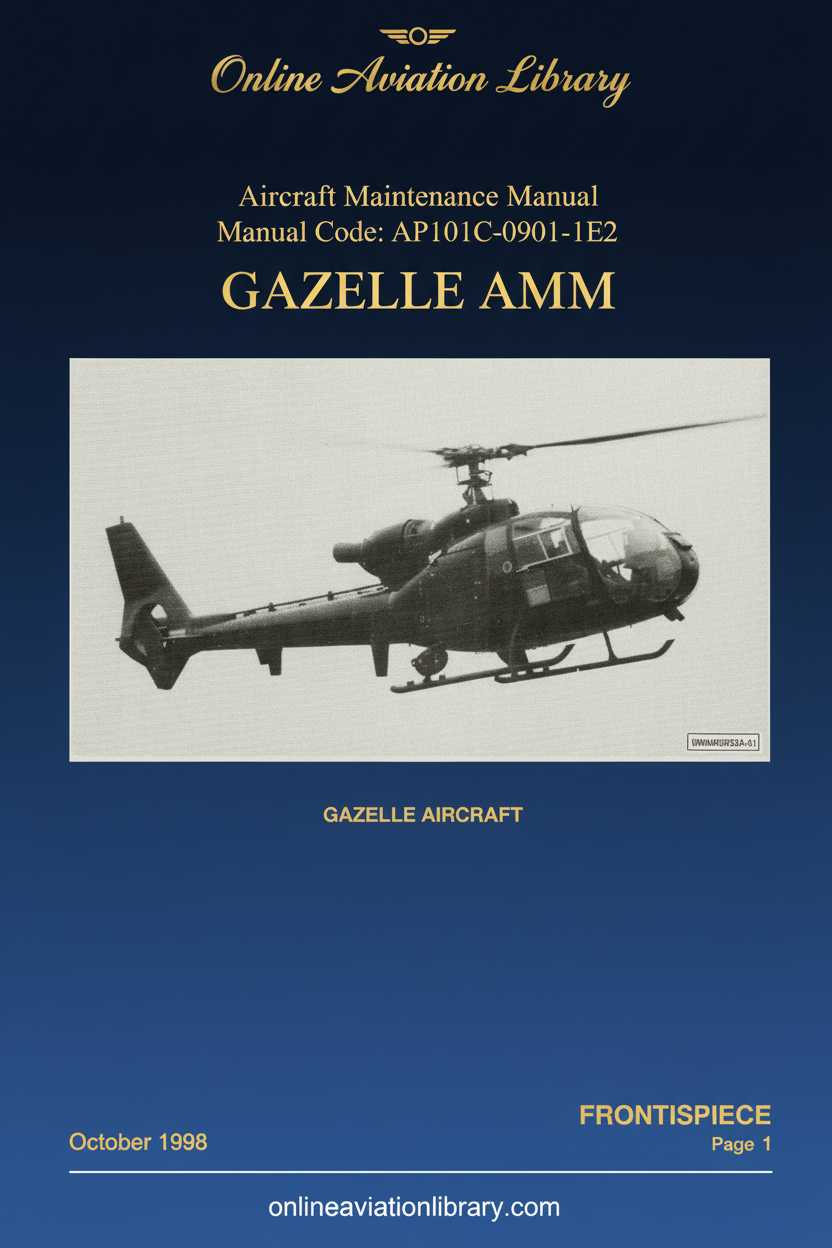

• AP101C-0901-1B1 - Basic Maintenance
• AP101C-0901-1B2 - Basic Maintenance
• AP101C-0901-1C1 - Basic Maintenance
• AP101C-0901-1C2 - Basic Maintenance
• AP101C-0901-1D1 - Basic Maintenance

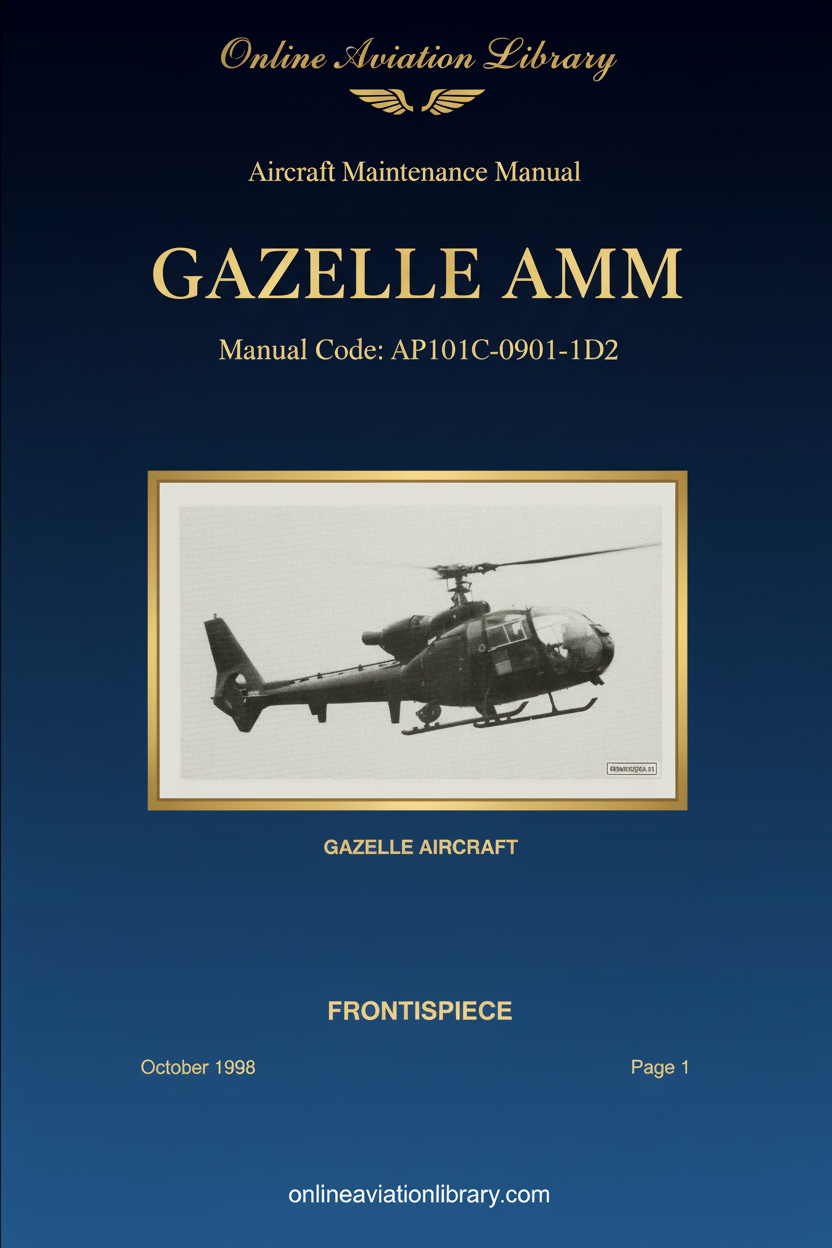

• AP101C-0901-1D2 - Basic Maintenance
• AP101C-0901-1E1 - Basic Maintenance
• AP101C-0901-1E2 - Basic Maintenance

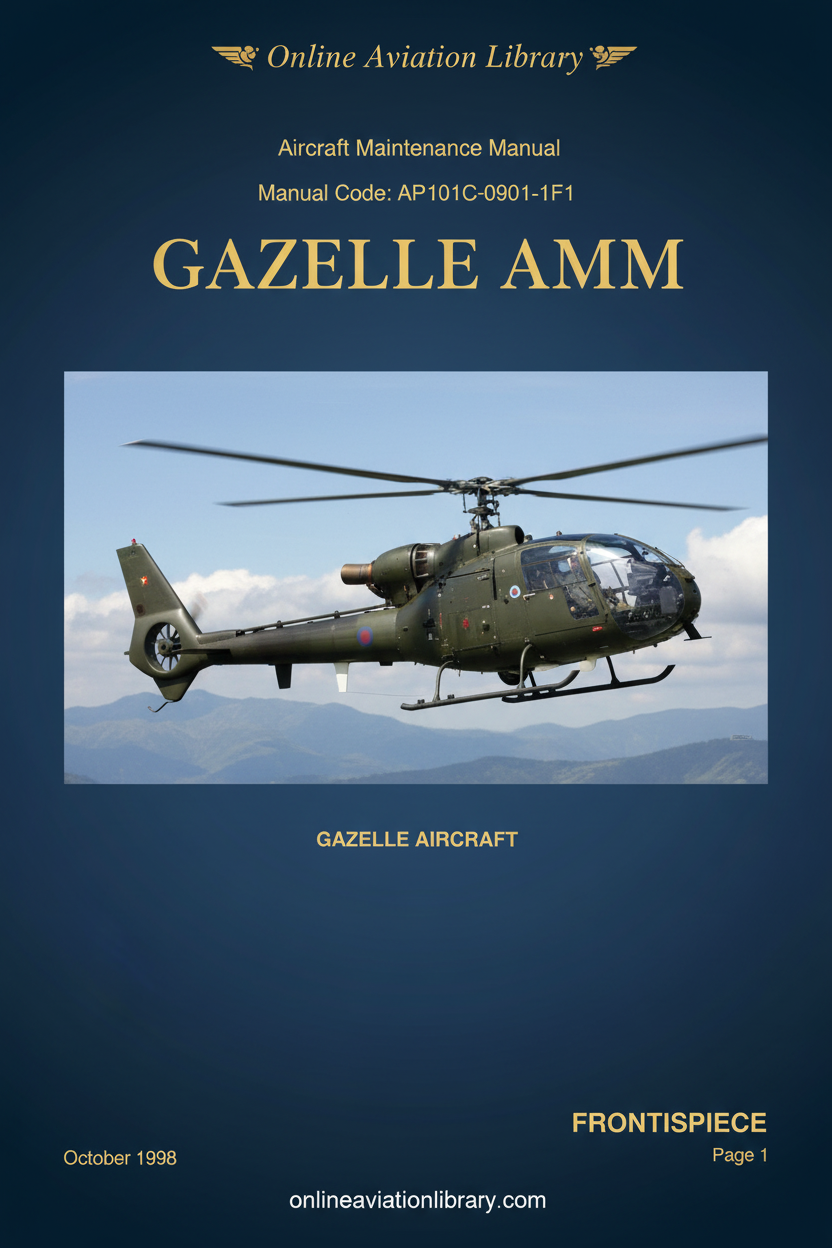

• AP101C-0901-1F1 - Basic Maintenance

Component Manuals - General and Technical Information:

• A.P. 105B-1420-136 - Powered Flying Control (Servo Jack)

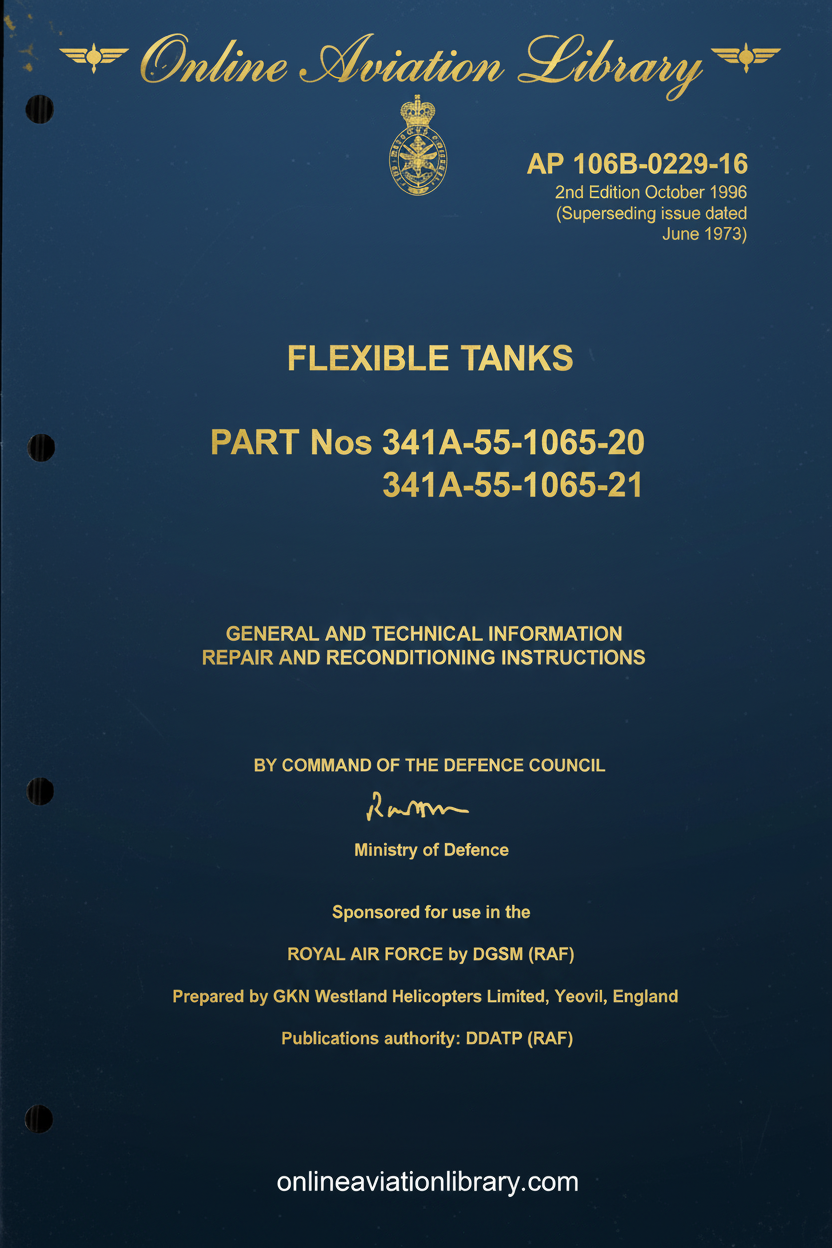

• A.P. 106B-0229-16 - Flexible Tanks (Repair and Reconditioning Instructions)

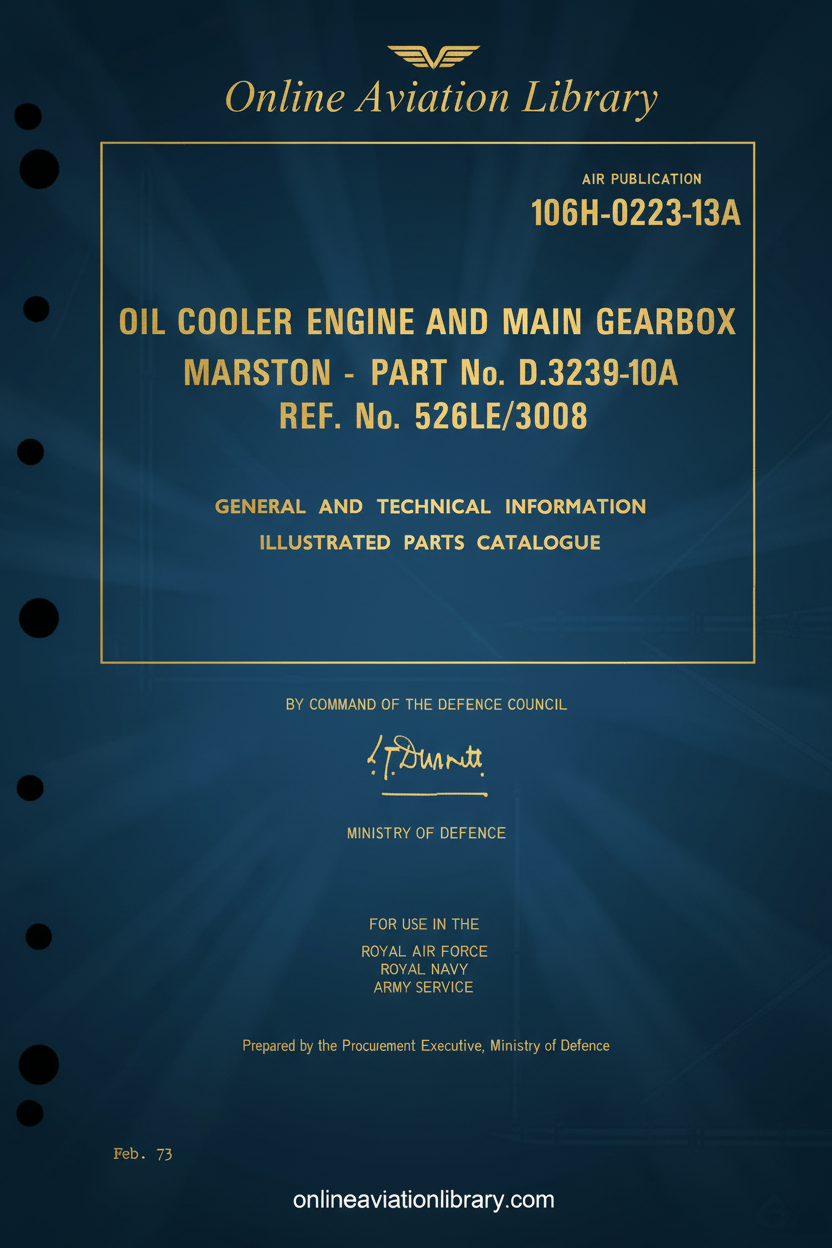

• A.P. 106H-0223-13A - Oil Cooler Engine and Main Gearbox Marston (Illustrated Parts Catalog)

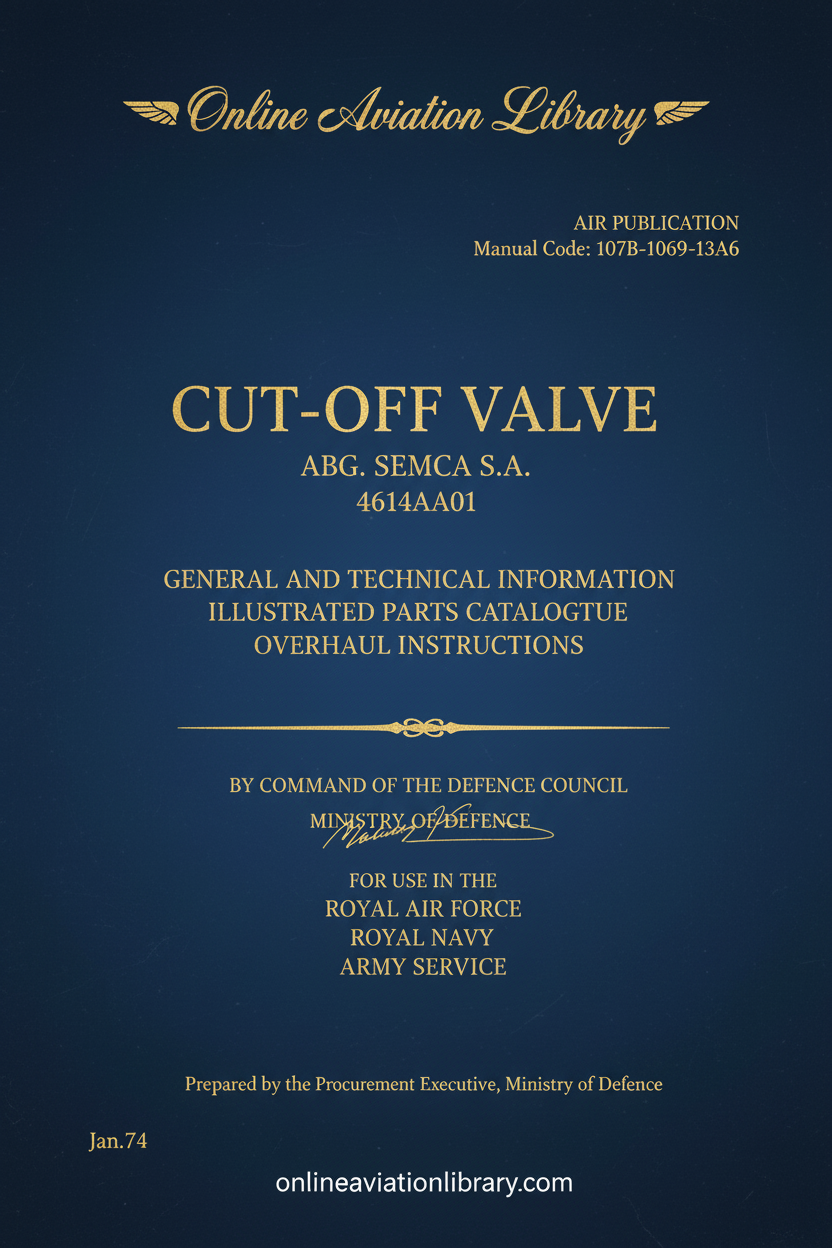

• A.P. 107B-1069-13A6 - Cut-Off Valve ABG. SEMCA S.A. (Parts Catalog, Overhaul Instructions)
• A.P. 108B-0409-1(R) - Aircrew Equipment Assemblies: Static Seats and Emergency Equipment
• A.P. 112G-0610-1 - Engine Oil Temperature Indicator, Brion Lerou
• A.P. 112G-0638-1 - Outside Air Temperature Thermometer, Galtier Type
• A.P. 112G-0934-1 - Pitot Head, Type 500 Badin
• A.P. 112G-1175-1 - Pressure Switch, Jaeger
• A.P. 112G-1182-1 - Pressure Switch Low Pressure Type 35111-2 and 35111-3
• A.P. 113D-0328-136 - Static Inverter Sfena TSG 420-203 (Parts Catalogue, Overhaul Instructions)
• A.P. 113D-07128-13A6 - Voltage Regulator Lucas Aerospace (Parts Catalogue, Repair and Reconditioning Instructions)
• A.P. 113D-07199-13A6 - Voltage Regulator and Overvoltage Protection Unit Lucas Aerospace (Parts Catalogue, Repair and Reconditioning Instructions)
• A.P. 113E-0495-13A6 - Fuel Pump Intertechnique Part No. 2180F (Parts Catalogue, Overhaul Instructions)
• A.P. 113F-0280-13 - Anticollision Lamp Vibration Absorber (Parts Catalogue and Related Information)

These comprehensive technical manuals—spanning from 1974 through 1998—represent the authentic documentation used throughout the Gazelle's distinguished service career. Prepared by GKN Westland Helicopters Limited and authorized by the Ministry of Defence, these publications were used across the Royal Air Force, Royal Navy, and Army Service for maintenance, operations, and component overhaul procedures.

For aviation historians, restorers, researchers, and enthusiasts, this collection offers invaluable primary-source material documenting British military helicopter operations, maintenance procedures, technical specifications, and component-level documentation from an era of significant aviation development.

Disclaimer:

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format.

Important Notice: These manuals and blueprints are not meant to be used for current update material for certification, maintenance, or repair purposes, but make an excellent reference for scholars, collectors, modelers, and aviation enthusiasts.

For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise is not meant to imply or suggest any endorsement by, or affiliation with, that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.
