This comprehensive digital collection contains original technical documentation for the Allison J33 series turbojet engines, covering all major variants including the J33-A-9, J33-A-10, J33-A-10A, J33-A-20, J33-A-23, J33-A-31, J33-A-33, J33-A-33A, and J33-A-35 models. The collection includes authentic USAF Technical Orders and Navy Bureau of Aeronautics manuals used throughout the engine's operational service life.
Collection Contents:

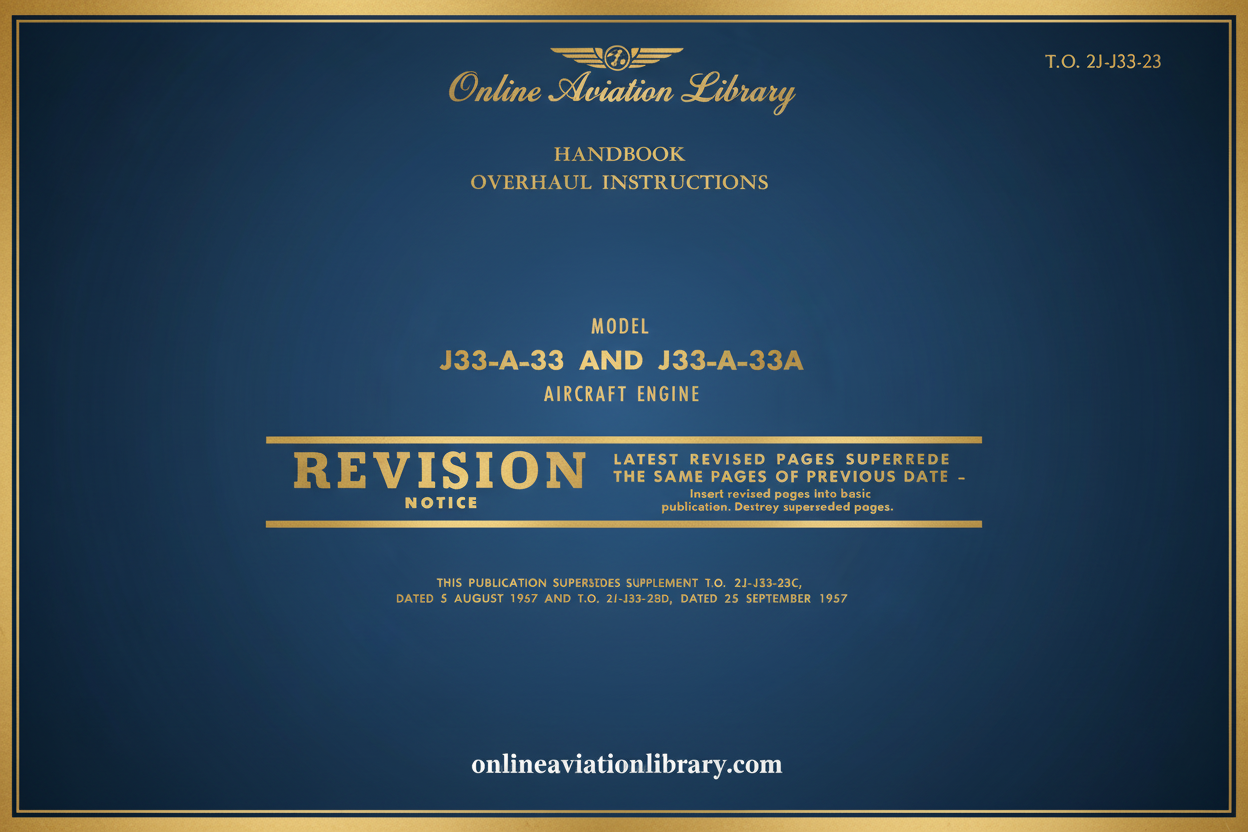

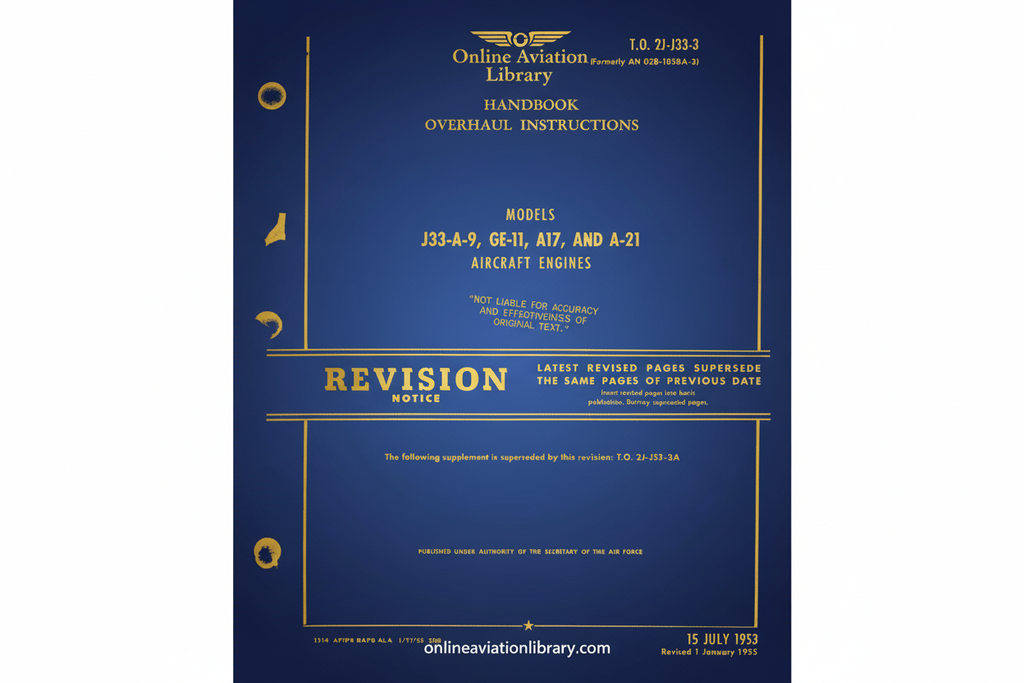

- Handbook Overhaul Instructions for multiple J33 variants

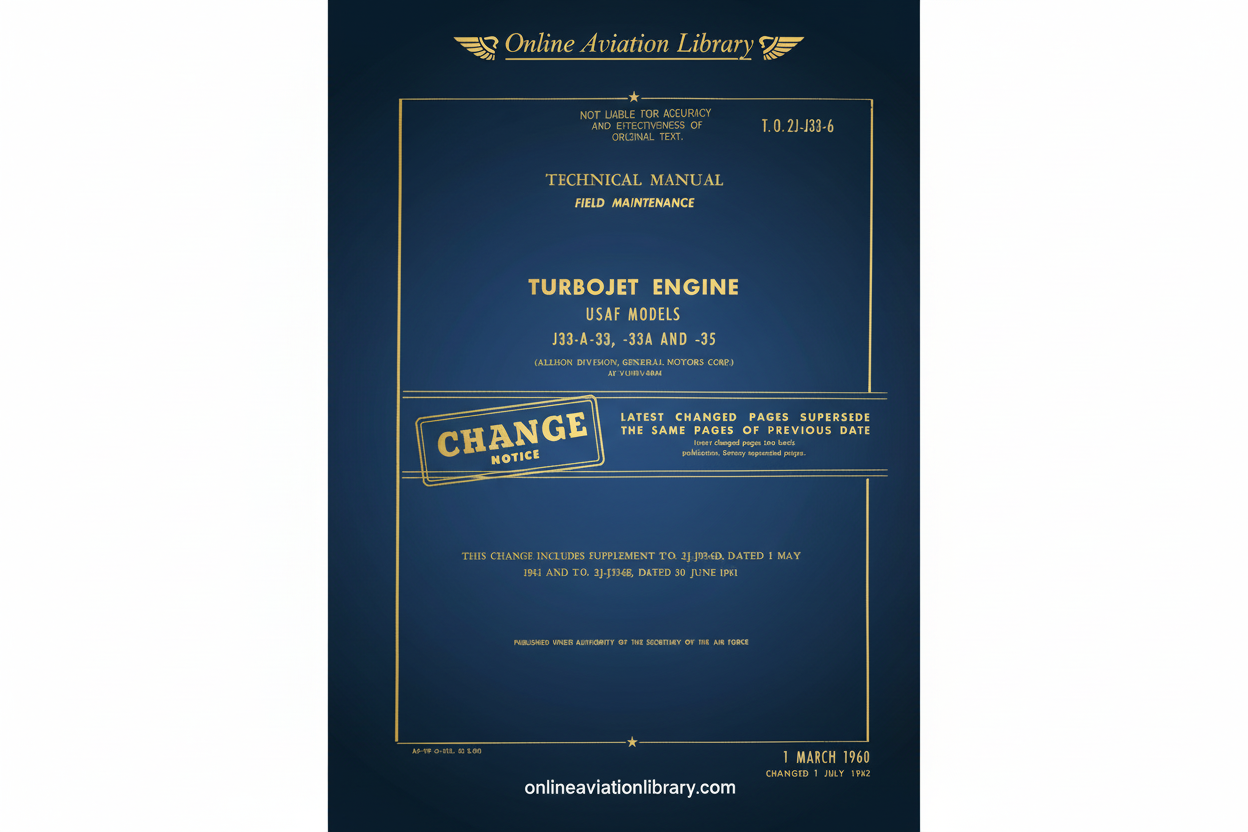

- Technical Manual Field Maintenance procedures

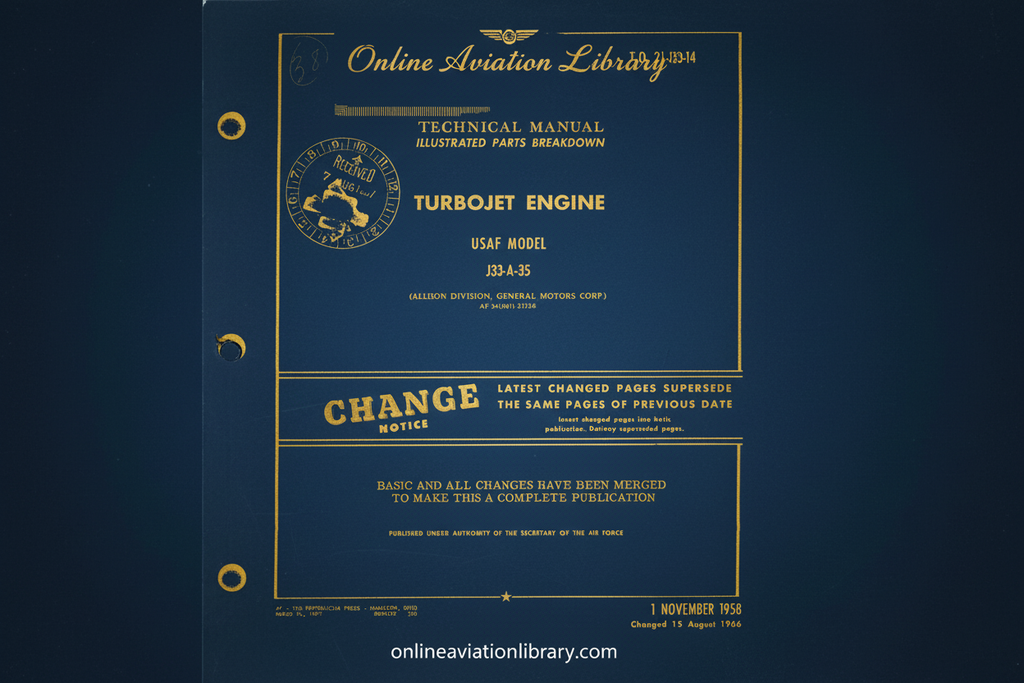

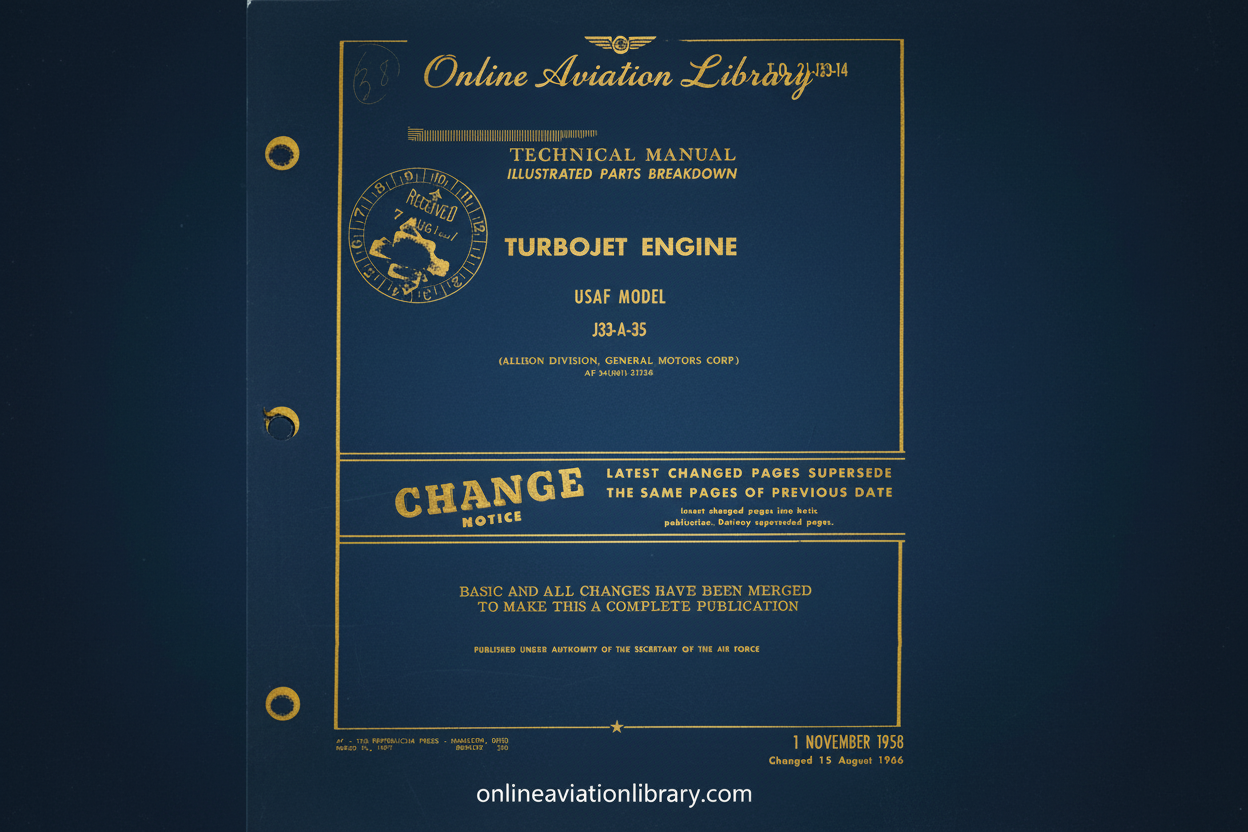

- Illustrated Parts Breakdown with detailed component diagrams
- Service School Training Manual

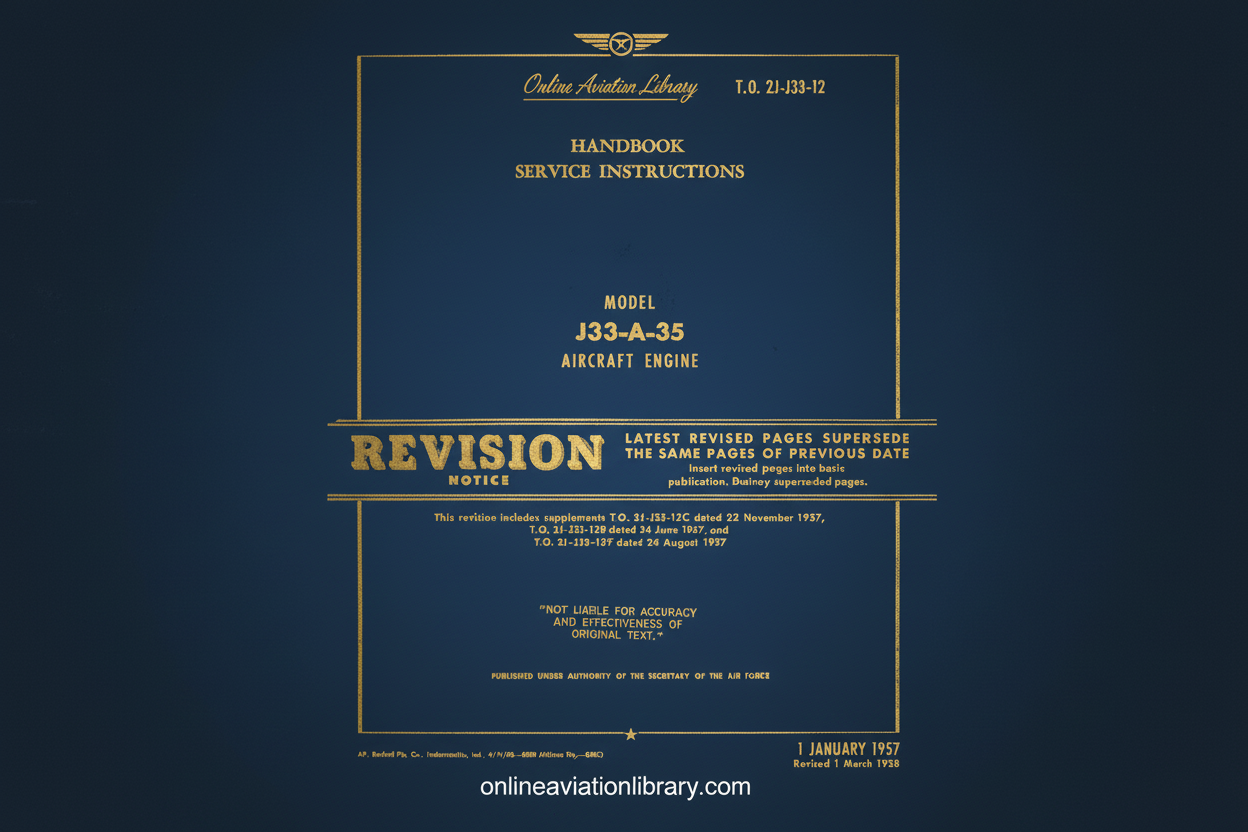

- Handbook Service Instructions
- Complete coverage of both USAF and Navy variants
Technical Specifications Covered:
- Engine overhaul and maintenance procedures
- Component identification and parts cataloging
- Field maintenance and troubleshooting
- Service instructions and technical bulletins
- Revision notices and supplement integration
Historical Note:
The Allison J33 turbojet engine holds a distinguished place in aviation history as one of America's first successful production turbojet engines and a cornerstone of early jet-age military aviation. Developed by the Allison Engine Company (a division of General Motors Corporation) in Indianapolis, Indiana, the J33 was based on the British de Havilland Goblin engine design, adapted and refined for American production and military requirements.
The J33 first entered service in the late 1940s and quickly became one of the most widely used American turbojet engines of the early Cold War era. It powered numerous significant aircraft including the Lockheed P-80 Shooting Star (America's first operational jet fighter), the Lockheed T-33 T-Bird trainer (one of the most produced jet trainers in history), the Republic F-84 Thunderjet, and various experimental and research aircraft. The engine's reliability and performance made it instrumental in transitioning the U.S. Air Force and Navy from propeller-driven aircraft to jet-powered operations.
Throughout its production run from the mid-1940s through the 1950s, the J33 underwent continuous development, resulting in numerous variants with improved thrust ratings, reliability enhancements, and operational refinements. Models ranged from the early J33-A-9 and GE-11 variants through the more advanced J33-A-35, with thrust outputs typically ranging from 4,000 to 6,000 pounds. Each variant was carefully documented by both the U.S. Air Force (through Technical Orders) and the Navy (through Bureau of Aeronautics publications), reflecting the engine's critical role in both services.
The J33 played a vital role during the Korean War (1950-1953), where it powered F-80 Shooting Stars and F-84 Thunderjets in combat operations, proving the viability of jet fighters in sustained military operations. The engine's performance in combat conditions led to numerous field modifications and improvements, all meticulously documented in service bulletins and technical manual revisions. The T-33 trainer variant, powered by the J33, became the primary jet trainer for the U.S. military and numerous allied nations, training generations of jet pilots throughout the 1950s, 1960s, and beyond.
Beyond military applications, the J33's influence extended to the development of American jet engine technology and manufacturing capabilities. The experience gained in producing and maintaining the J33 helped establish the foundation for subsequent generations of more powerful and efficient turbojet and turbofan engines. Many J33-powered aircraft remained in service well into the 1970s and 1980s, particularly in training and support roles, testament to the engine's fundamental soundness and maintainability.
Today, the Allison J33 is remembered as a pioneering powerplant that helped usher in the jet age for American military aviation. Several J33-powered aircraft, particularly P-80 Shooting Stars and T-33 trainers, remain airworthy in private hands and museums worldwide, maintained by dedicated restorers and vintage jet enthusiasts. The engine is also represented in numerous aviation museums and technical collections, where it serves as an important artifact of early jet propulsion technology.
These original technical manuals represent authentic documentation used throughout the J33's operational service life by military maintenance personnel, overhaul facilities, and training schools. They provide comprehensive technical information essential for understanding the engine's design, operation, maintenance procedures, and component relationships. For restorers working to maintain airworthy J33-powered aircraft, historians researching early jet engine development, aviation enthusiasts studying Cold War-era military technology, and collectors of technical aviation documentation, these manuals offer invaluable primary-source information about one of America's most historically significant turbojet engines.
Format: Digital download (PDF format)
Language: English
Source: Original USAF Technical Orders and Navy Bureau of Aeronautics publications
Coverage: Multiple J33 variants with comprehensive technical documentation
Perfect for vintage jet restorers, aviation historians, technical researchers, museum curators, and serious enthusiasts of early jet-age military aviation technology.
